Corrugated Roof Panel - Macrolux Rooflite

Description

Technical Data

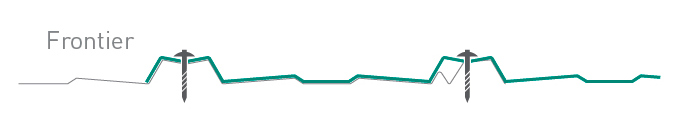

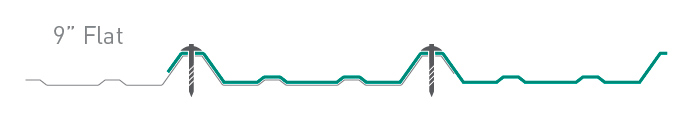

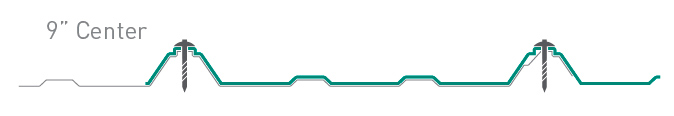

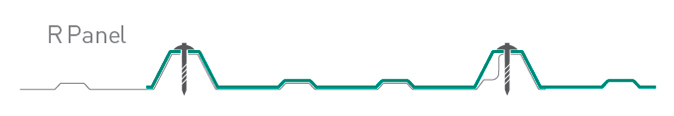

Profiles

Excellent lightweight resistant material fabricated with the High-tech Macrolux polycarbonate resin of Bayer.

It has a high resistance to harmful effects of weather, including hail damage and surface erosion. Additionally provides UV protection.

TECHNICAL DATA

Technical Data	Value
Thermal expansion	2.1mm for every 3m by 10ºC
Thermal conductivity	0.17W/mºC
Vicat softening point	135ºC (AS 1462)
Resistance to Traction	65 Mpa (AS 1462)
Resistance to Impact	Exceeds 12 joules (AS 4257.6-1994) Approximately 250 times more than glass.
Retention of Corrugation	Without changes for up to 2 hours at 100ºC.
1. Thermal expansion – calculate at room temperature at the moment of installation. 2. Resistance to impact – resistance to impact may decrease over time. C=These characteristics have been taken from the CAMPUS plastic database and are based on the international catalogue of databases for plastic according to ISO10350 (Plastics – data acquisition and presentation, comparable only, 1993) NB= No Break*

		Test Conditions	Units	Standards	Macrolux Resin Values
	Rheological Properties
C	Melt volume – Flow Rate	300ºC; 1.2Kg	cm3/(10min)	ISO 1133	6
	Melt Mass – Flow Rate	300ºC; 1.2Kg	g/(10min)	ISO 1133	6.5
	Contraction after parallel/normal molding		%	b.o ISO 2577	0.6-0.8
	Mechanical Properties
C	Tensile Modulus	1mm/min	MPa	ISO527	2350
C	Tensile Strength, Ultimate	50mm/min	MPa	ISO527	65
C	Tensile Strength, Yield	50mm/min	%	ISO527-1;2	6.3
C	Nominal Elongation at Break	50mm/min	%	ISO527	>50
C	Shear Strength, Ultimate	50mm/min	MPa	ISO527-1;2	70
C	Shear Strength, Yield	50mm/min	%	b.o ISO527-1;2	120
C	Tensile Stress Modulus	1 Hr	MPa	ISO 899-1	2200
C	Tensile Stress Modulus	1000h	MPa	ISO 899-1	1900
C	Charpy Impact Resistance	23ºC	KJ/M2	ISO 179-1eU	NB
C	Charpy Impact Resistance	-30ºC	KJ/M2	ISO 179-1eU	NB
C	IZOD Impact Strength	23ºC; 3mm	KJ/M2	b.o ISO 180-4A	95
	Thermal Properties
C	Glass Transition Temperature	10ºC/min	ºC	ISO 11357-1,-2	148
C	Heat Stability	1.80 MPa 0.45 MPa	ºC	ISO 75-1;2	128 140
C	Vicat Softening Temperature	50N; 50ºC/h	ºC	ISO 306	148
C	Linear Coefficient of Thermal Expansion	23 a 55ºC	10-4/K	ISO 11357-1,-2	0.65
C	UL 94 Combustibility (UL valoration)	1.5mm 0.75mm 10mm	Class	UL94	HB V-2 V-O(CL)
C	Oxygenation Index	Procedure A	%	ISO 4589-2	27
	Glow-Wire Flammability Test	1.5mm 2.0mm 3.0mm	ºC	IEC 695-2-12	850 850 930
	Electrical Properties
C	Dielectric Constant	100Hz		IEC 250	3.1
C	Dielectric Constant	1MHz		IEC 250	3.0
C	Dielectric Loss Factor	100Hz	10^-4	IEC 60250	5
C	Dielectric Loss Factor	1MHz	10^-4	IEC 60250	95
C	Specific Volume Resistivity		0hm.m	IEC 60093	1E14
C	Specific Superficial Resistivity		0hm	IEC 60093	1E16
C	Dielectric Strength	1mm	kV/mm	IEC 60243-1	34
C	Comparative Tracking Index	Solution A	Assessment	IEC 112	250
	Other Properties
C	Water Absorption (values at saturation)	Water at 23ºC	%	ISO 62	0.30
C	Water Absorption (values at equilibrium)	23ºC / 50% r.h	%	ISO 62	0.12
C	Density		Kg/M3	ISO 1183-1	1200
C	Fiberglass Content		%	ISO 3451-1	–
	Specific Properties of the Material
C	Viscosity Number		cm3/g	ISO 1628-1	64
	Refraction Index	Procedure A		ISO 489	1.587
	Physical Properties

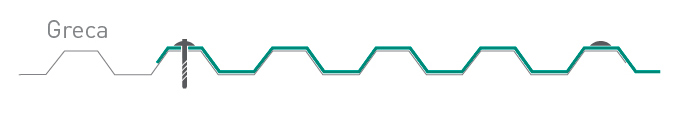

		Roma		Greek
	Total Nominal Width (mm)	1270		1270
	Nominal Delivery Length (mm)	1220		1220
	Nominal Thickness (mmm)	0.8		0.8
	Nominal Separation (mm)	76		76.0
		18		18
	Fg per m2	1.07		1.15
	% of Diffusion Factory Light Transmission (DFLT) RET.WIO14
		Clear	Opal	Bronze	Smoke Grey
	% of Light Transmission (DFLT)	90	60	48	50

PHYSICAL SPECIFICATION

Physical specification
Standard Width	26” & 50”
Standard Length	up to 27’
Thickness	0.031”
Weight	0.23 lb/sq ft
Additional widths and lengths available: call for details
Basic colors	Clear White Smoke
Special colors	Upon request available in special colors as well as in combination of them.

Downloads

MSDS 2017

Format: pdf

Download

Special Layers

Double UV: Two sided UV protection for superior resistance which helps maintain long-term high light transmission and provides cutting and installation advantages.

FrostyGlass: Features a ground glass appearance, providing greater light diffusion.
