Resolite Acryloy and CR-Acryloy are names synonymous with Fiberglass Reinforced Polymer panels in the corrosion and industrial markets. In very corrosive environments, such as steel mill pickling operations, the maintenance staff discovered that after a few years of exposure their metal cladding was failing.

Download PDF

Embossed exterior surface – the exterior surface is embossed creating a resin rich surface for improved performance. The interior surface is smooth.
Types available – 1230 (12 oz.) thru 830 (8 oz.)
Choice of colors: available in two standard translucent colors – Clear and White; and three standard opaque colors – Stone White, Gray and Beige. Consult Standard Color Guide for more information.
Choice of profiles: 5 standard profiles – 7.2 x 1.5″, 7.2D x 1.75″, 7 x 1.5″ and 4.2 x 1-1/16″ and 2-1/2 x 1/2″. Consult Profile Selection Guide for non-standard profile availability and additional information.

Features and Benefits

Corrosion resistant – produced with a high quality non-fire rated polyester resin system.
Outstanding weathering – our high quality resin system incorporates acrylic modification and UV stabilizers.
C/W Barrier protection – OPTIONAL – a protective barrier on exterior and/or interior surfaces that is fused into the resin/fiberglass matrix to give the panel even greater protection against degradation.
Meets ASTM D 3841 – Standard Specification for Glass-Fiber-Reinforced Polyester Plastic Panels.

Typical Applications

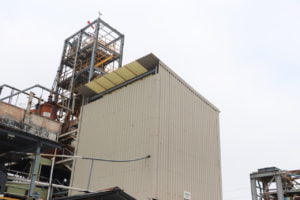

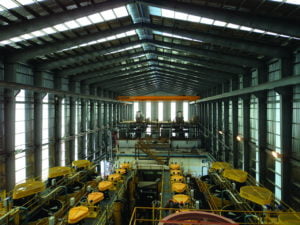

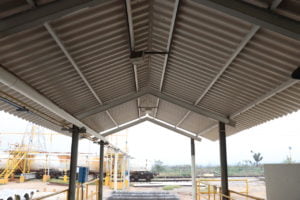

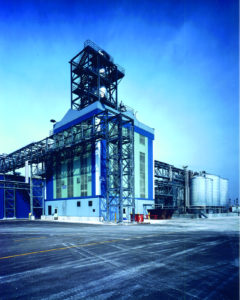

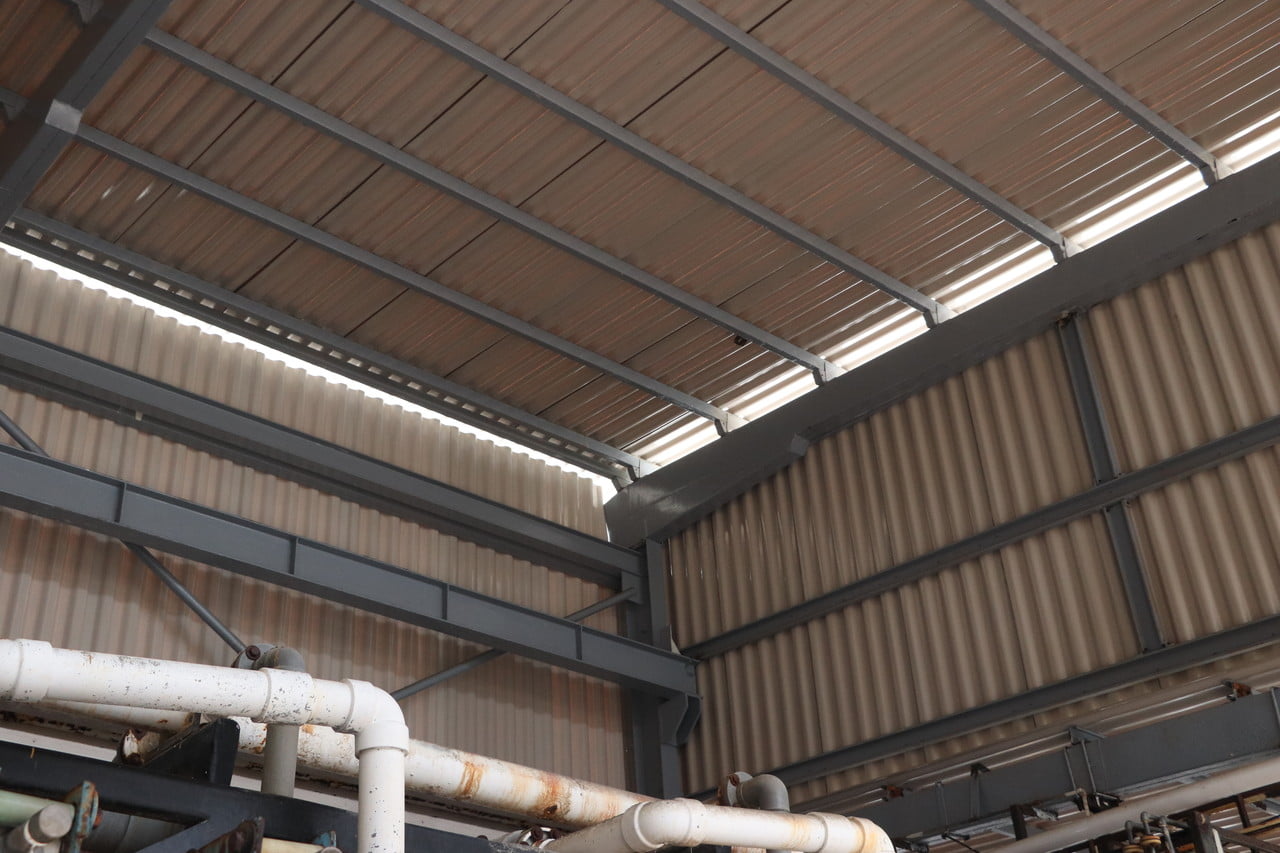

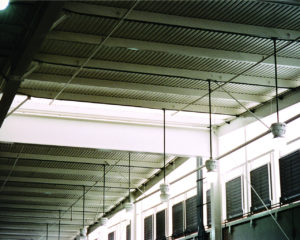

Metal construction Industrial Buildings, Warehouses
Commercial storehouses (supermarkets)
Architectural skylight in sport complexes, hotels, swimming pools, airports, etc.

Applications

High performance industrial

Industrial

Multimedia

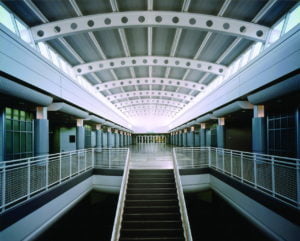

Fire rated panels for high spec industries

Similar Products

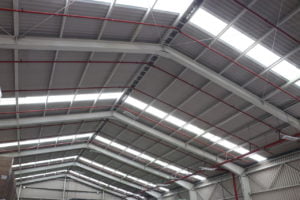

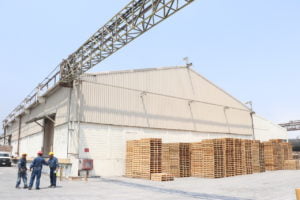

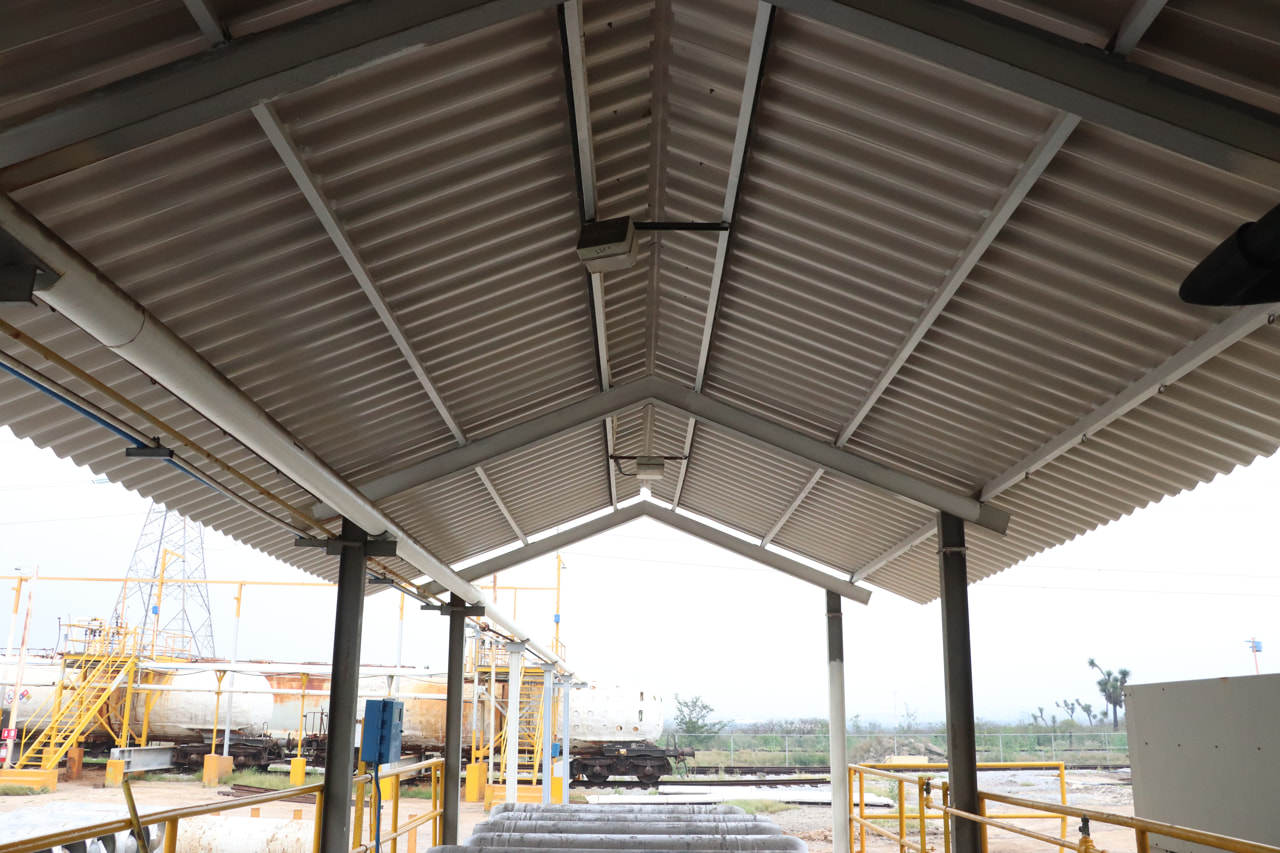

Opalit for Industrial applications is highly resistant to corrosive environments while reducing heat buildup indoors, allows exposure of the product outdoors in corrosive areas without alterations in their chemical composition and physical behavior, resulting an excellent opaque roofing and siding panel in industrial constructions.
