Home » FRP Liner Panel » Glasliner FRP panels for structures with extra quality features

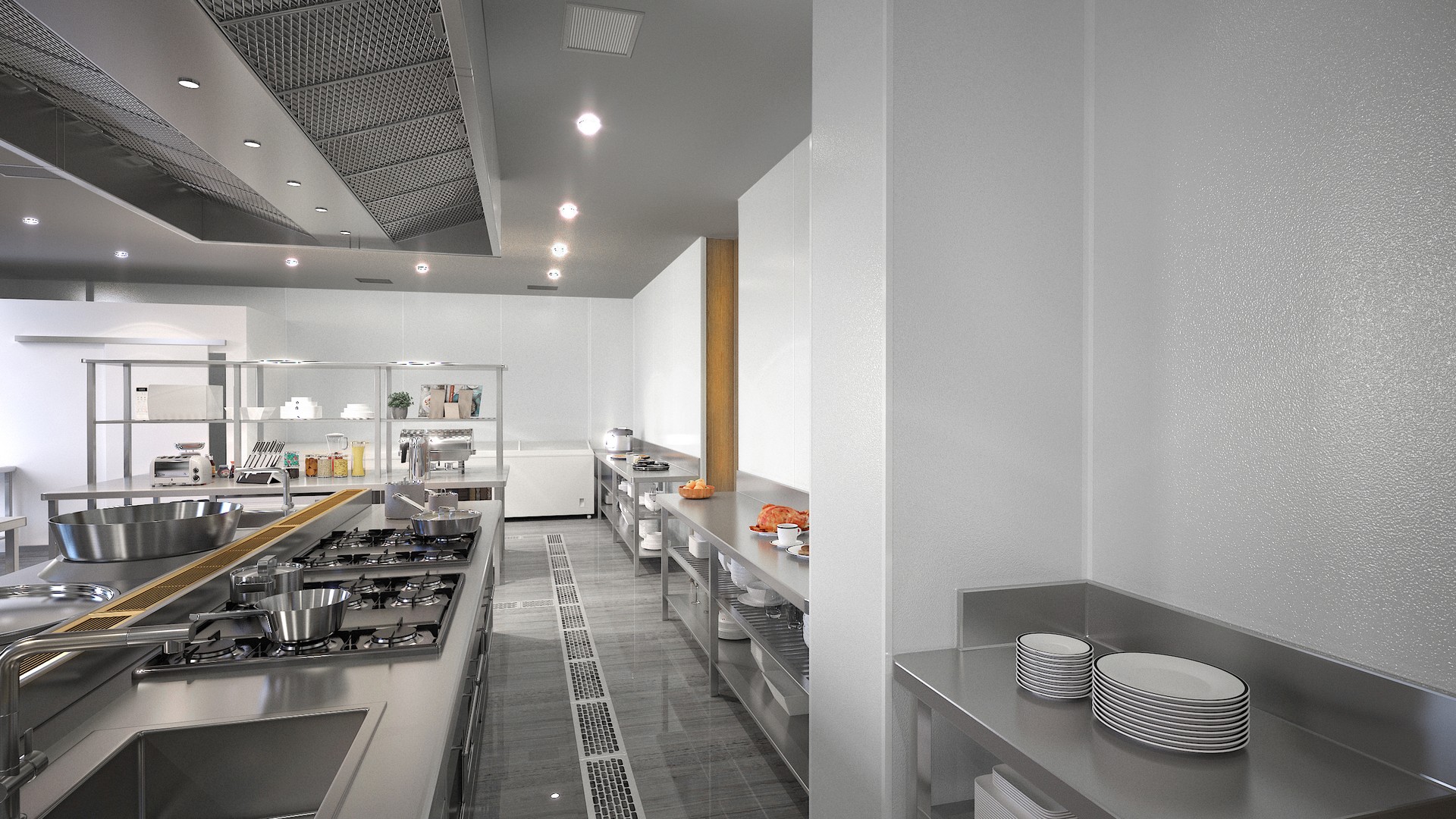

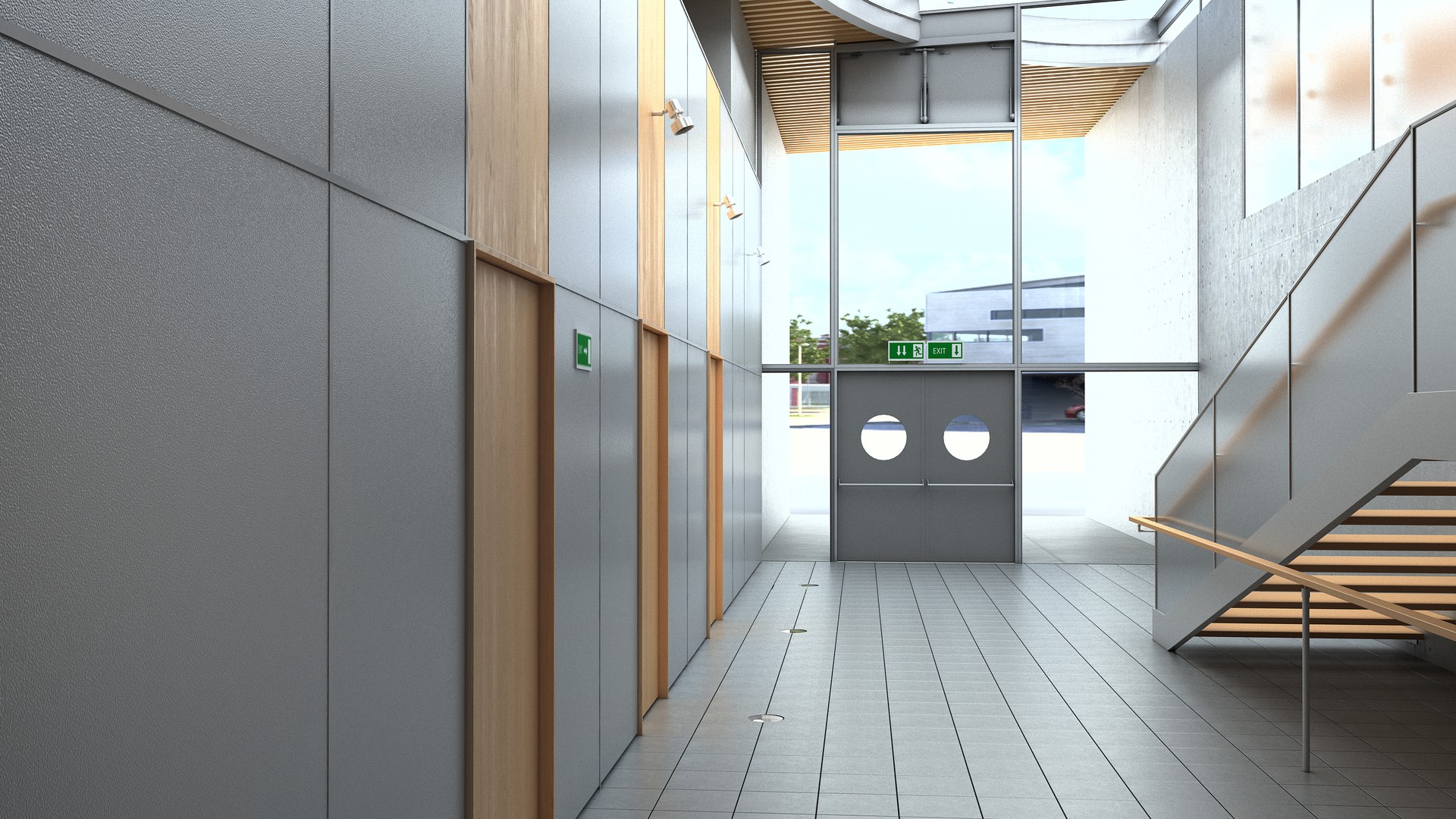

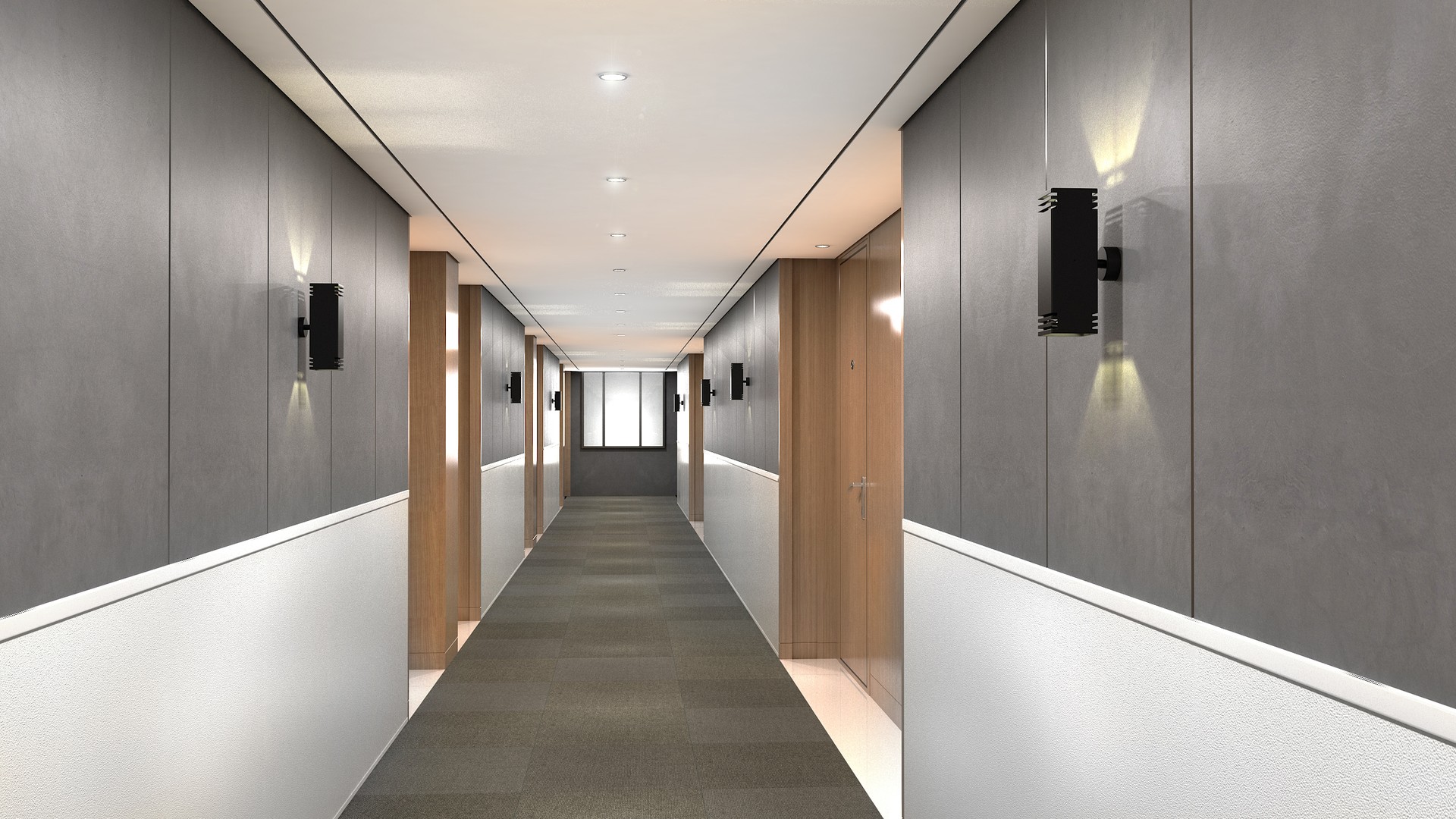

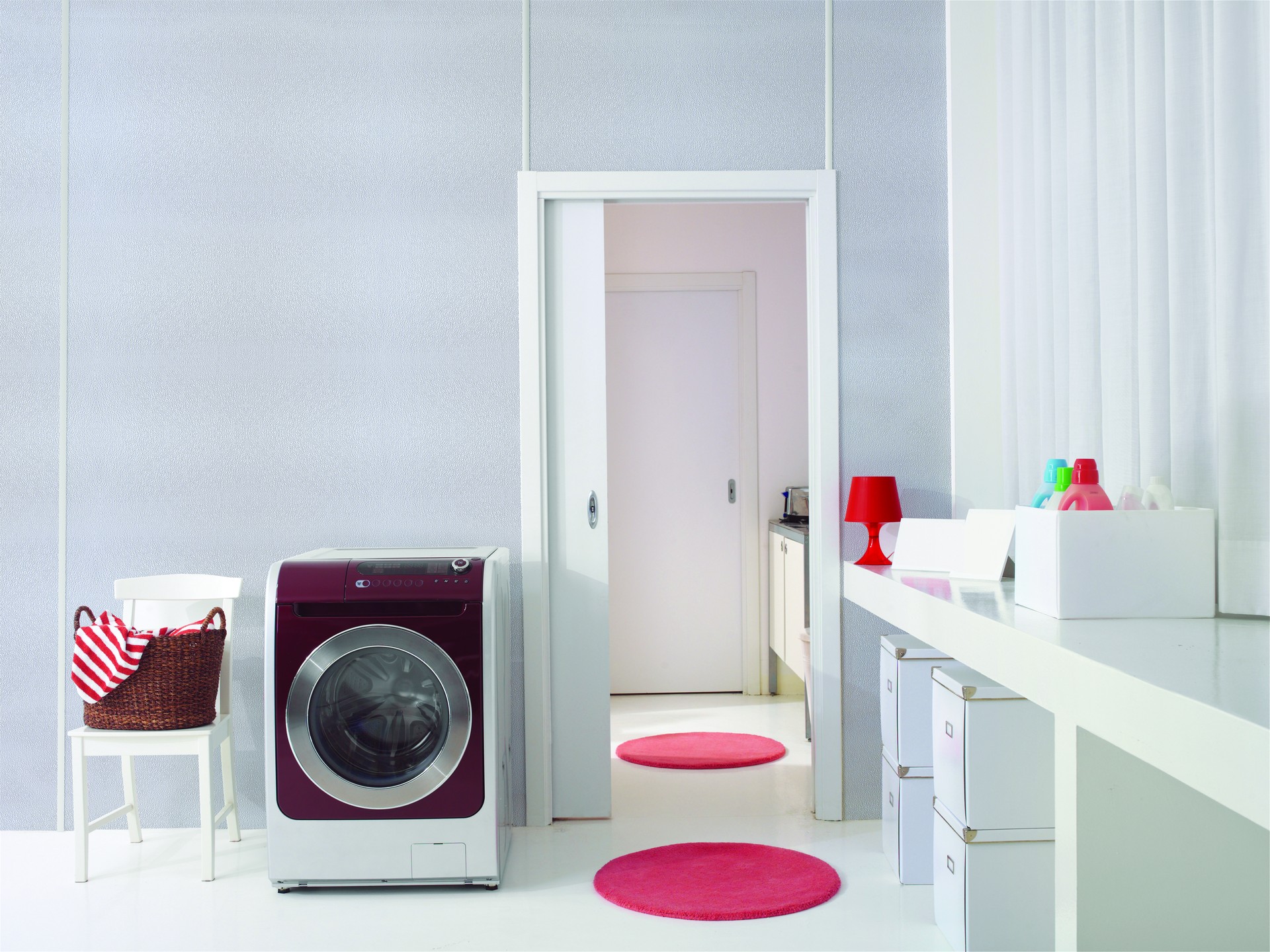

Glasliner resin rich surfaces are tough, strong, and easy to clean. Ideal for high traffic areas where hygiene and easy maintenance are a must. One major quality of Glasliner Wall Panels is that they fight the growth of bacteria, fungi, and other microorganisms.

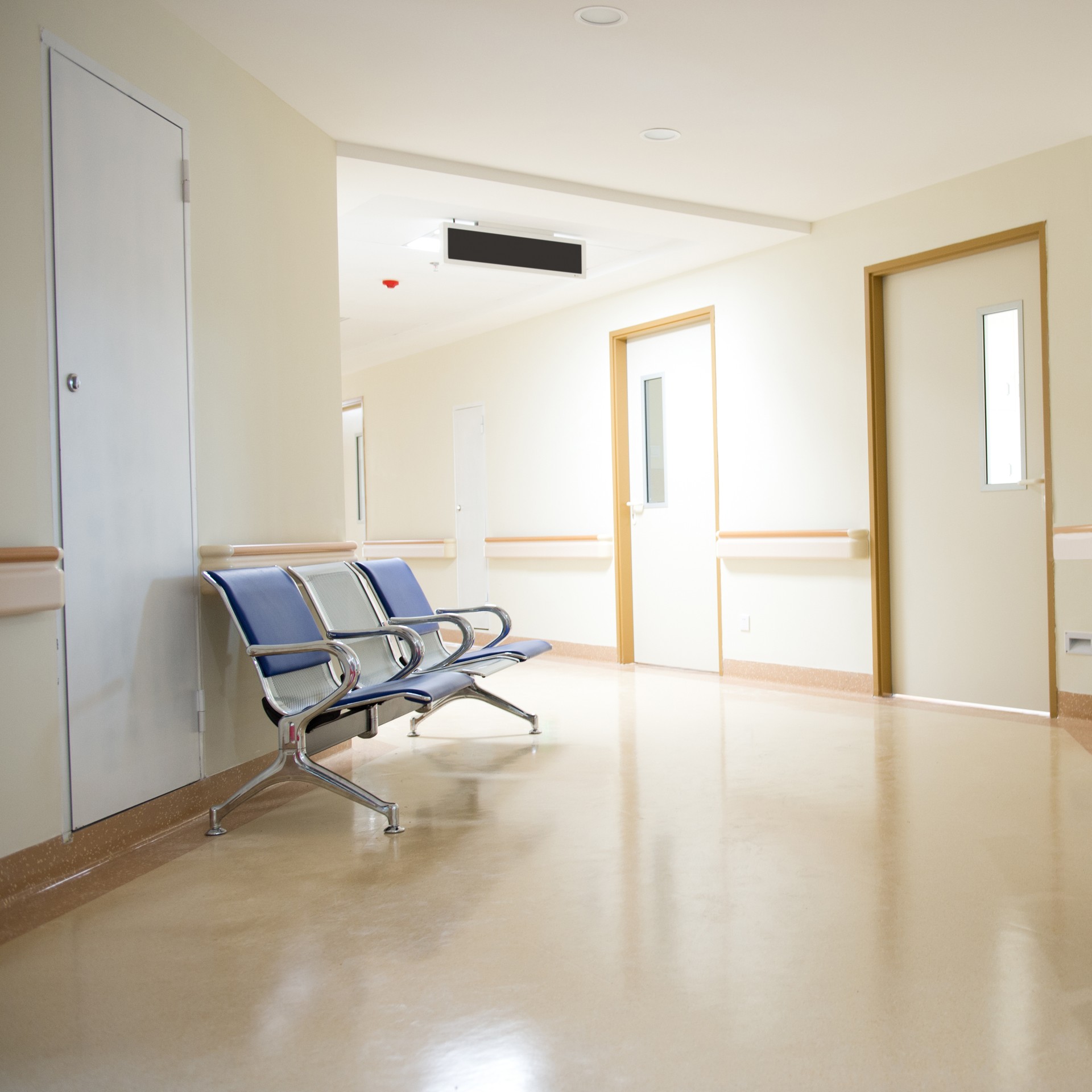

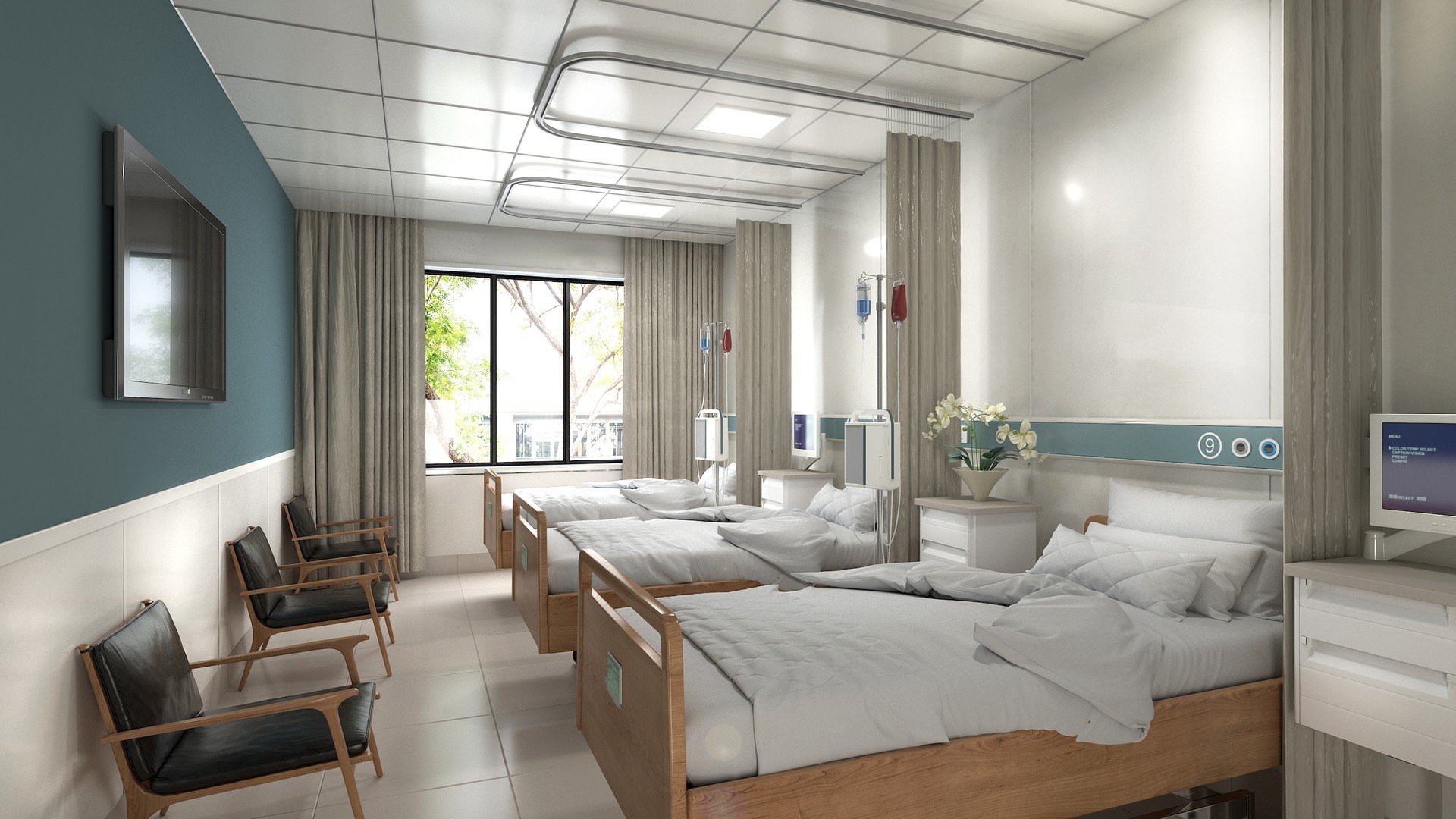

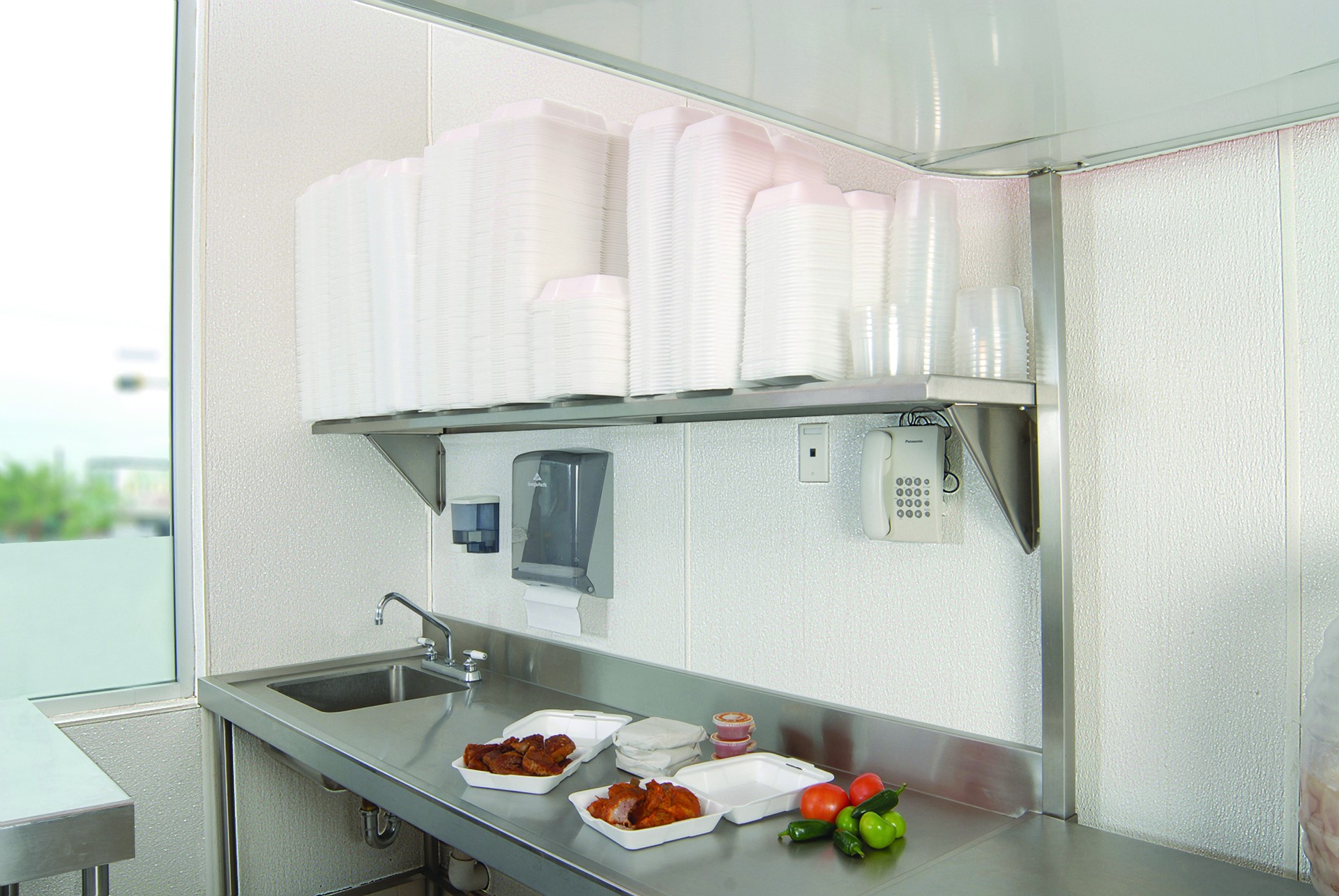

Some business applications requiere stronger materials. Materials that allow for constant cleaning with strong detergents, without deteriorating. This kind of performance is often demanded in industries such as healthcare and food production. This is why Stabilit America developed Glasliner FRP, a material specifically designed for these kinds of applications. View our catalogs and become familiar with the features and benefits of this product line. Contact us if you find the right solution for your project or need!
| Typical Physical Properties for .090” Contractor Grade | ||||
|---|---|---|---|---|
| Property | Test Method | Unit | Glasteel Class C General Purpose Result | Glasteel Class A Fire Retardant Result |
| Flexural Strength | ASTM D-790 | PSI | 17,000 | 10,000 |
| Flexural Modulus | ASTM D-790 | PSI | 6.0 x 105 | 3.1 x 105 |
| Tensile Strength | ASTM D-638 | PSI | 8,000 | 7,000 |
| Tensile Modulus | ASTM D-638 | PSI | 9.43 x 105 | 3.1 x 105 |
| % Elongation | ASTM D-638 | % | 1.20 | 1.80 |
| Water Absorption 21˚C @ 72 hrs. | ASTM D-570 | % | 0.17 | 0.72 |
| Izod Impact Strength | ASTM D-256 | ft.-lbs./in | 7.0 | 7.16 |
| Coef. of Linear Thermal Expansion | ASTM D-696 | in./in./ºF | 2.22 x 105 | 2.39 x 105 |
| Barcol Hardness | ASTM D-2583 | Avg. | 30 | 35 |
| Specific Gravity | ASTM D-792 | N/A | 1.6138 | 1.5743 |
| Abrasion Resistance | TABER | % WT Loss | 0.293 | 0.391 |
| Flash Ignition Temp. | ASTM 1929 | ºC | 430 | 400 |
| Self-Ignition Temp. | ASTM 1929 | ºC | 450 | 430 |
| Flame Spread | ASTM E-84 | N/A | ≤200 | ≤25 |
| Smoke Generation | ASTM E-84 | N/A | <450 | <450 |

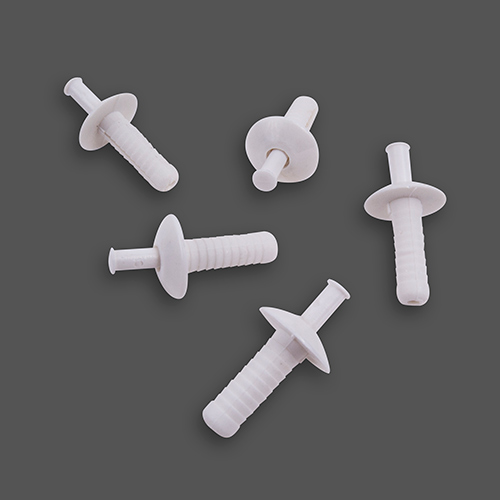

Nylon Rivels

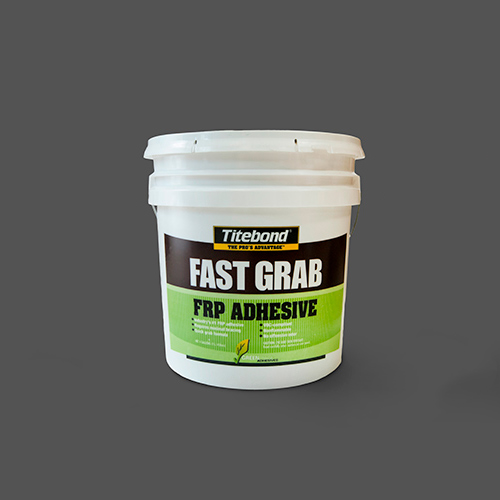

FRP Adhesives

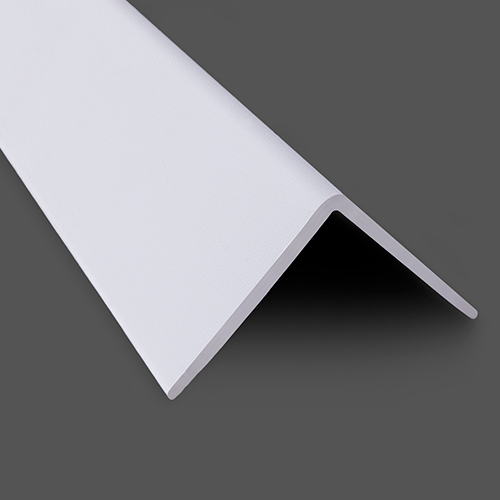

Inside corner angle

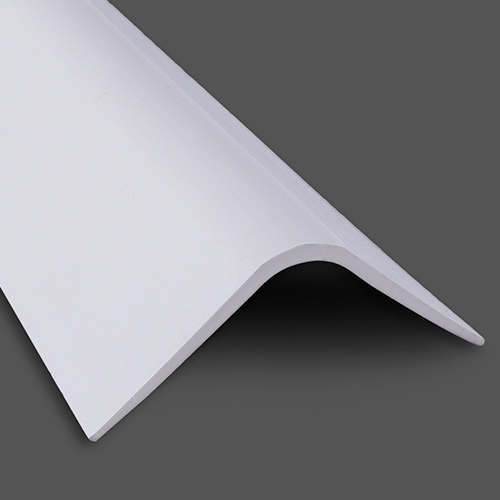

Outside Corner Angle

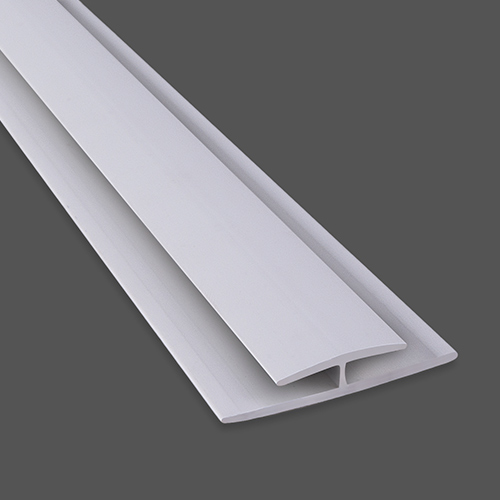

Divider Bar

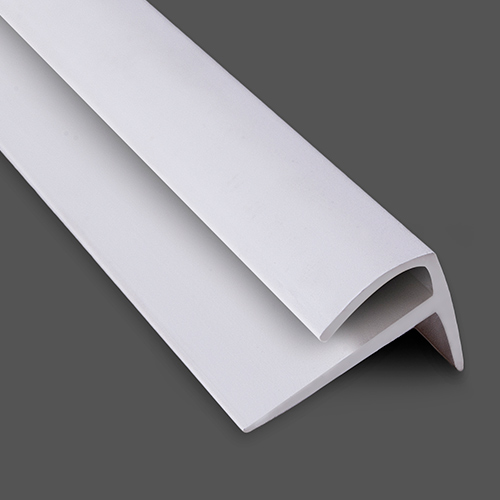

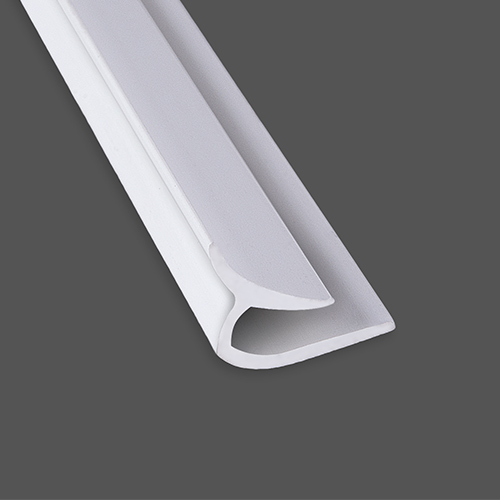

Outside Corner

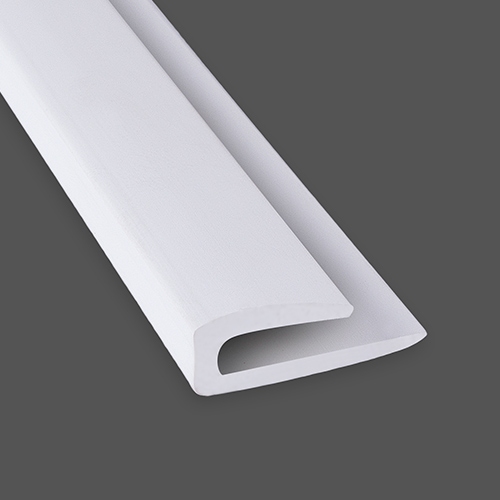

End Cap

Inside Corner


Bright White

Almond

Ivory

Beige

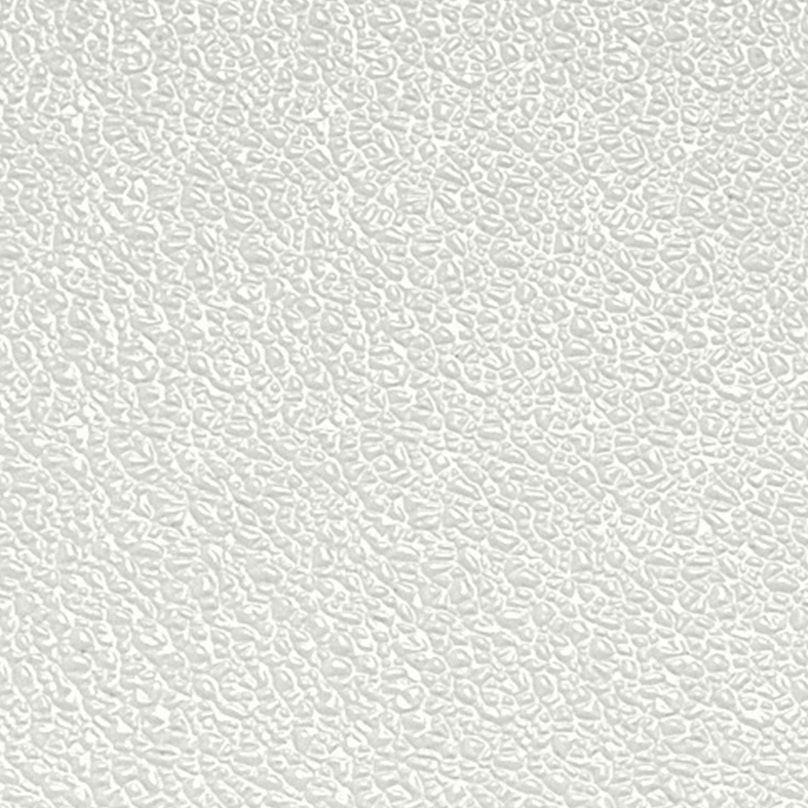

Light Gray

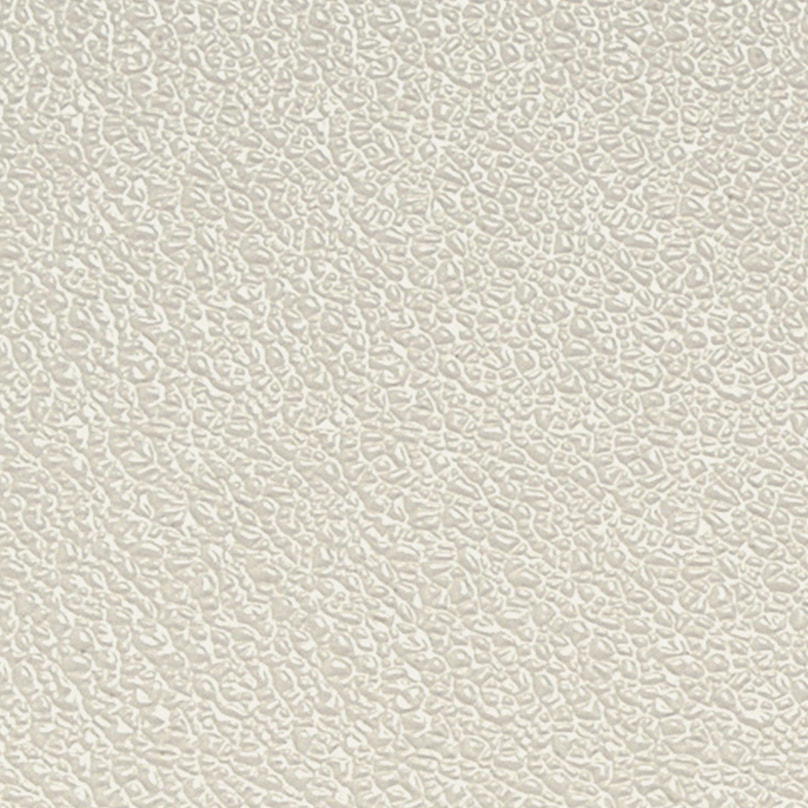

Silver

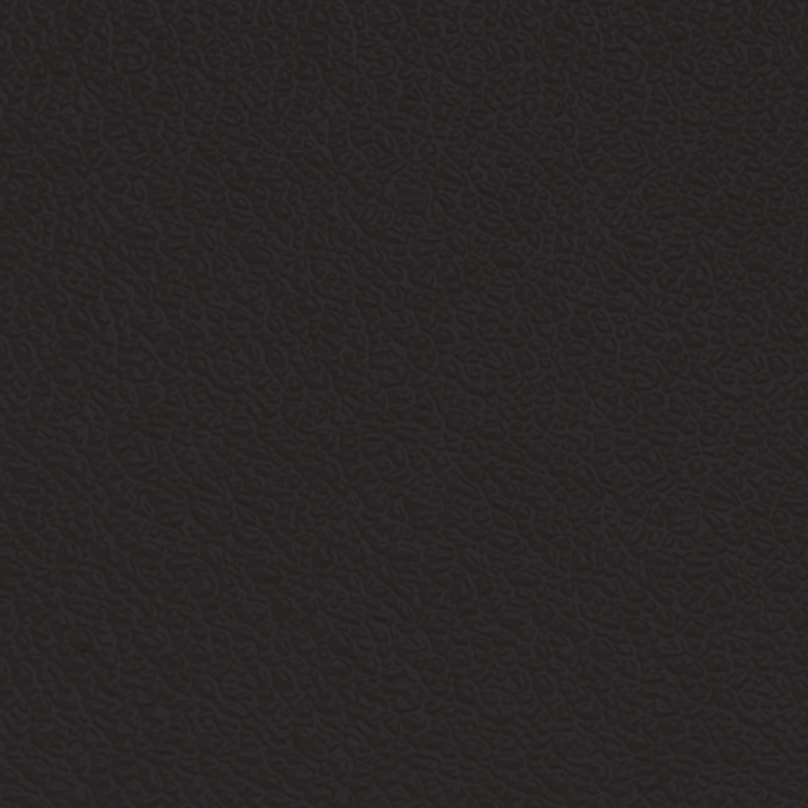

Black

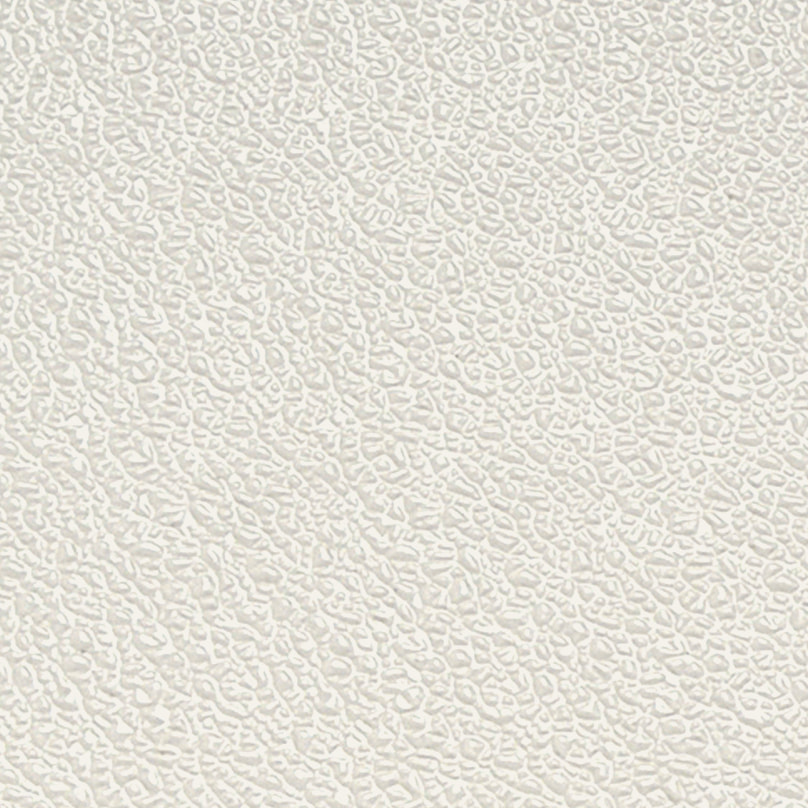

Traditional pebbled finish

Premium Gel Coat
White Only.
Colors are Special Order.
