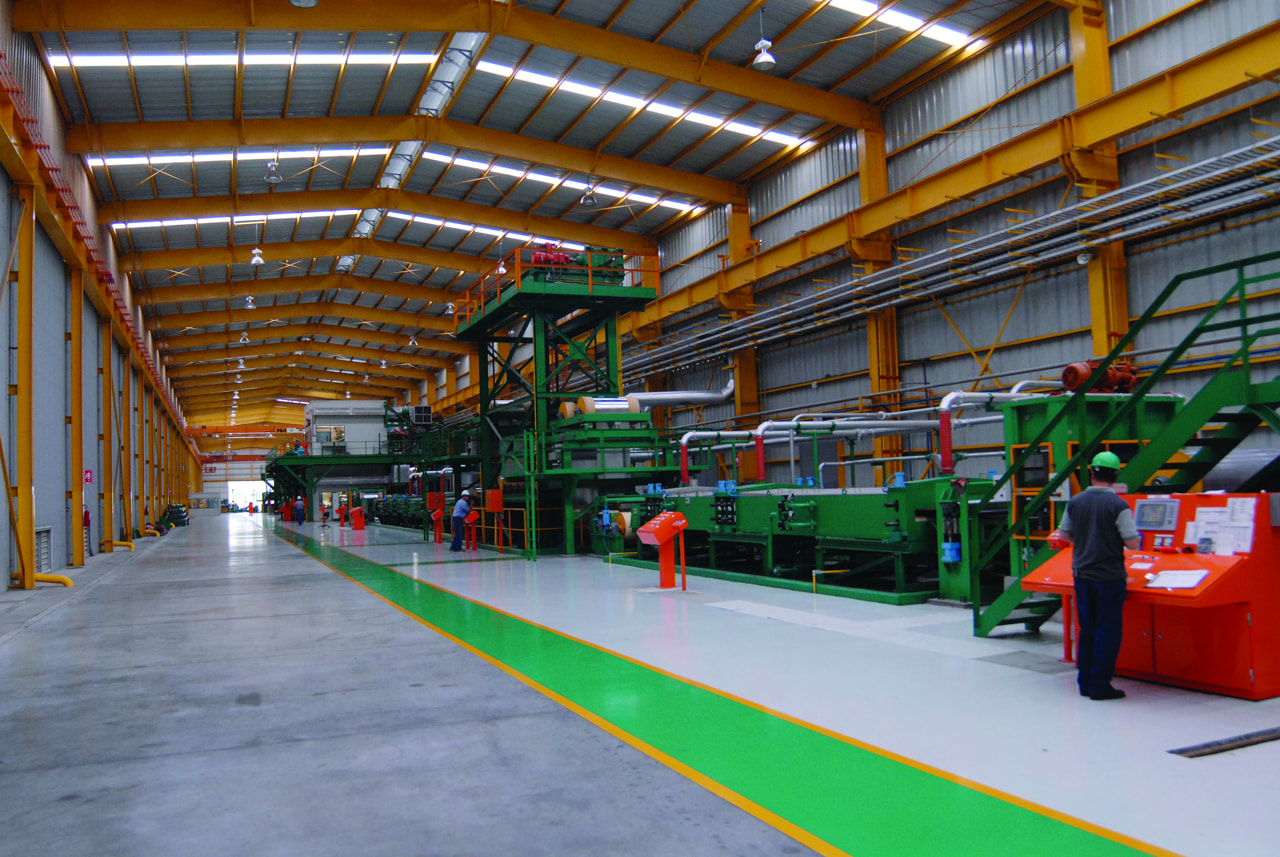

Acrylit is manufactured by Stabilit under continuous production process. Available in most important profile selections and colors.
| Technical Characteristics | |||
|---|---|---|---|
| Property | ASTM Std | Chopped Glass Result | Woven Roving Result |
| Tensile Strength | D638 | 12,595 PSI | 25,772 PSI |
| Tensile Modulus | D638 | 1.02 x 106 PSI | 1.52 x 106 PSI |
| Flexural Strength | D790 | 29,151 PSI | 24,306 PSI |
| Flexural Modulus | D790 | 0.97 x 106 PSI | 0.79 x 106 PSI |
| Compressive Strength | D695 | 23,304 PSI | 28,905 PSI |
| Compressive Modulus | D695 | 1.03 x 106 PSI | 1.5 x 106 PSI |
| Barcol Hardness | D2583 | 40-50 | 40-50 |
| % Elongation | D638 | 1.37% | 1.90% |
| Izod Impact | D256 | 17.87 | 18.59 |
| Building Code Class | CC2 | CC2 | |
| Burning Rate | D635 | < 2.5 in/min | < 2.5 in/min |
| Smoke Density | E84 | 105 | 95 |
| Glass Content | D2584 | 26% ± 3% | 34% ± 3% |

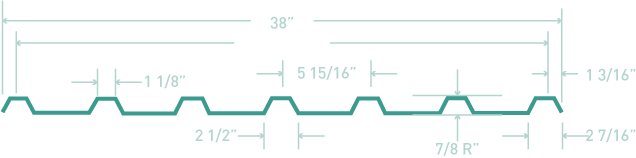

| AcrylitGC R Panel Span and Loading Table (8 oz.) | ||
|---|---|---|
| lbs. per sq. ft. | Chopped | Woven Roving |
| Roofing 10psf | 74″ | 76″ |
| Roofing 20psf | 65″ | 70″ |
| Roofing 30psf | 57″ | 63″ |
| Roofing 40psf | 48″ | 57″ |
| Roofing 50psf | 40″ | 50″ |
| Roofing 60psf | 31″ | 44″ |
| Siding 10psf | 77″ | 79″ |
| Siding 20psf | 71″ | 74″ |
| Siding 30psf | 65″ | 69″ |
| Siding 40psf | 59″ | 65″ |
| Siding 50psf | 53″ | 60″ |
| Siding 10psf | 47″ | 56″ |
| Selection | |||
|---|---|---|---|
| Product Range | Weight | Surface Finsh | Color |
| Acrylit | 5 oz/sq Ft | Smooth/Smooth | White Ice |
| 7 oz/sq Ft | |||
| 8 oz/sq Ft | |||
| Acrylit High Impact | 7 oz/sq Ft | Smooth/Smooth | |
| Acrylit High Performance | 8 oz/sq Ft | Smooth/Smooth | White |
Acrylit High Impact: with special features for harsh natural environments such as hail, snow and wind, having a greater impact resistance which represents a better performance before these elements. It has the same physical characteristics as Acrylit.
Acrylit High Performance: with Woven Roving glass technology to provide even greater strength when compared to other light transmitting panels. Available in R-Panel, 8 oz. / SF.

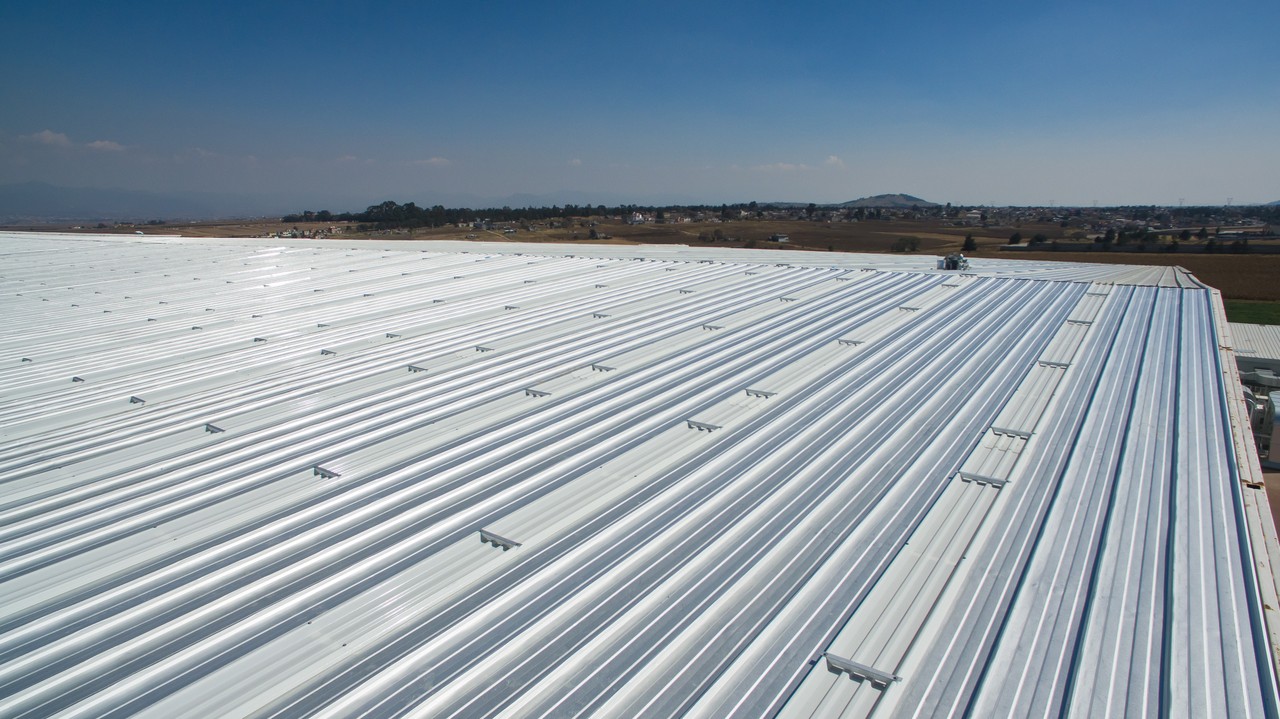

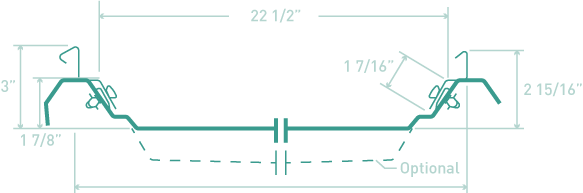

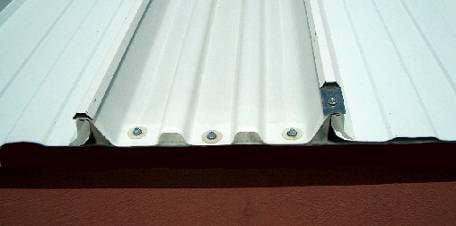

SSR panels: reliable lighting system for engargolable roofs, manufactured with Acrylit Double Layer.

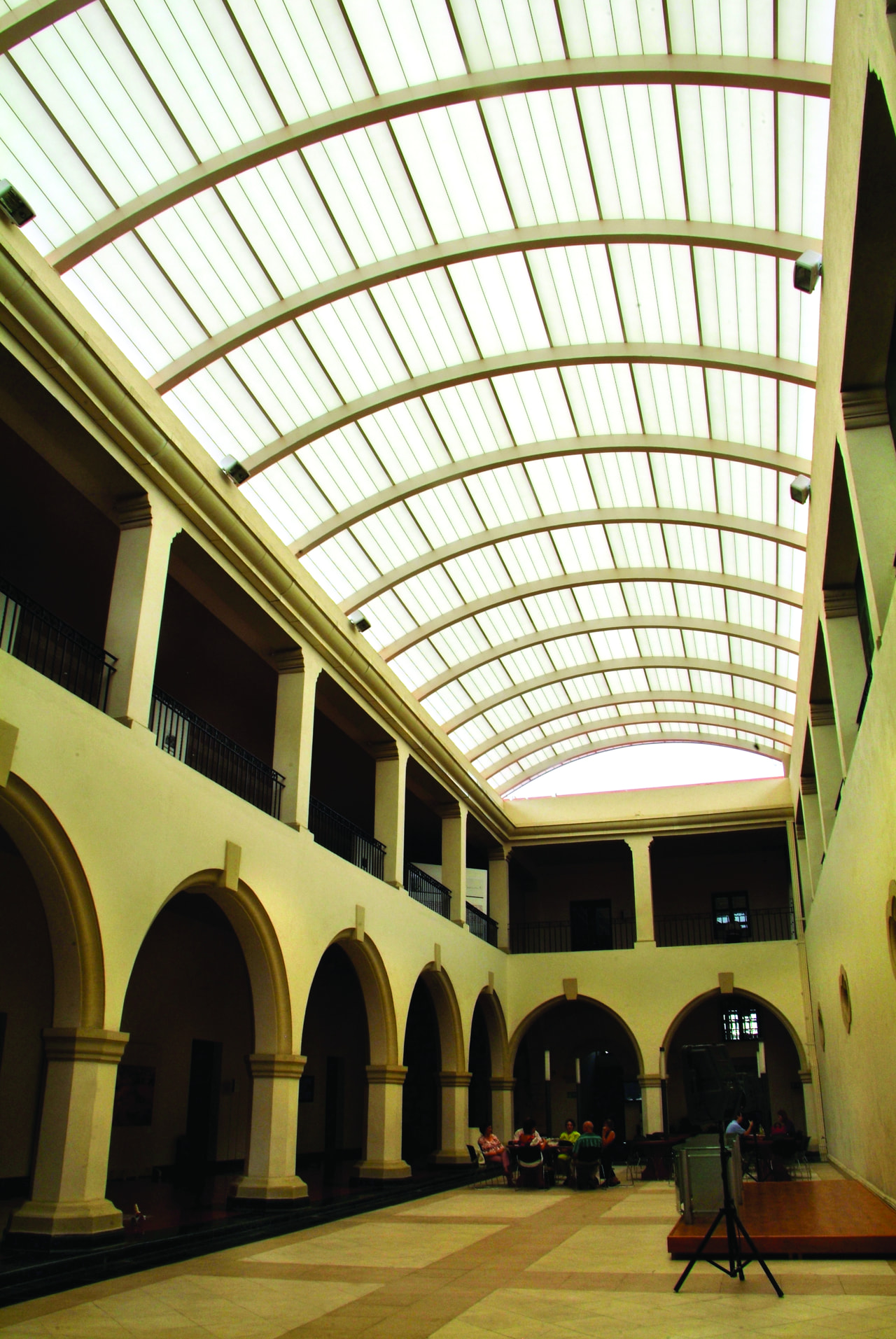

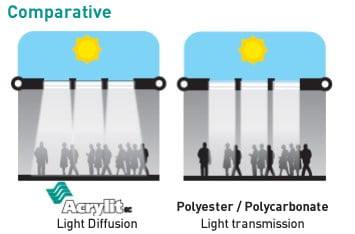

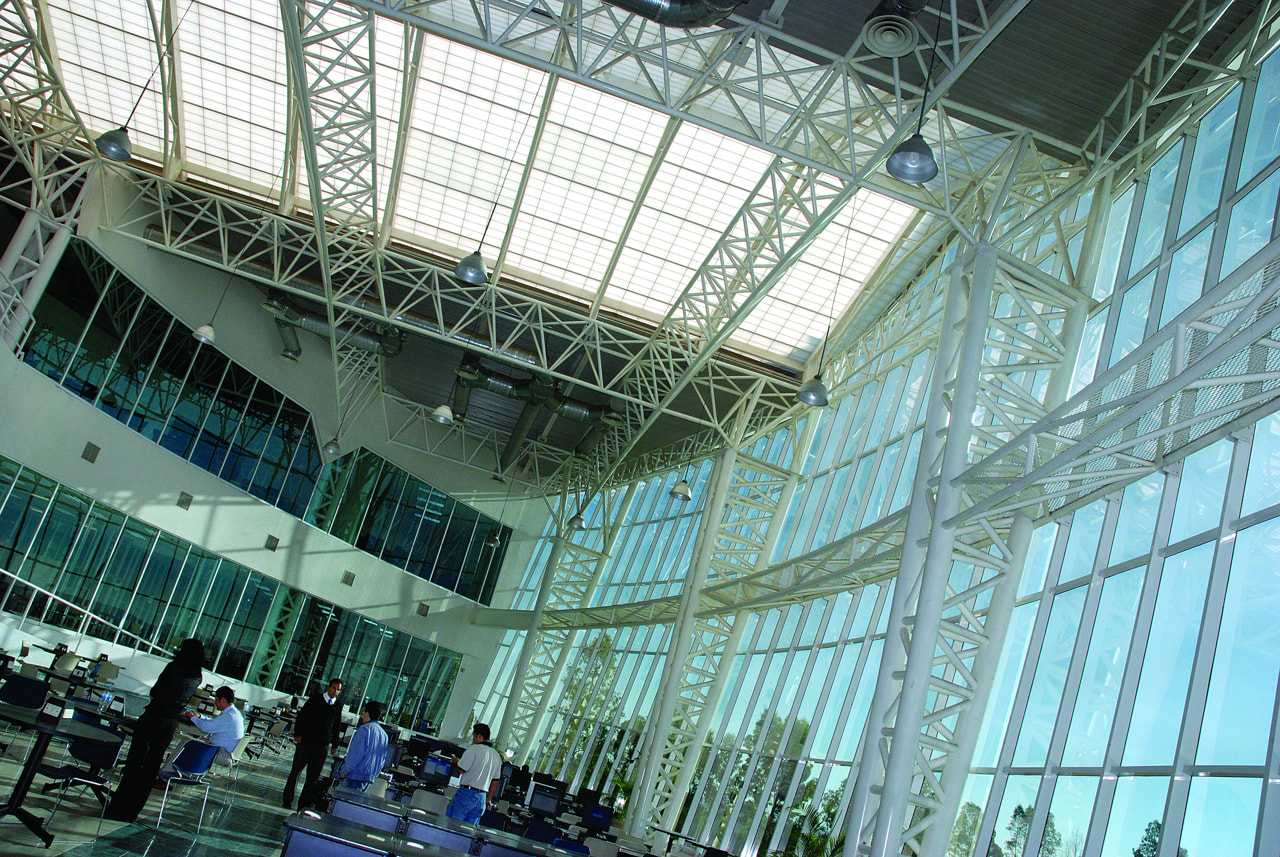

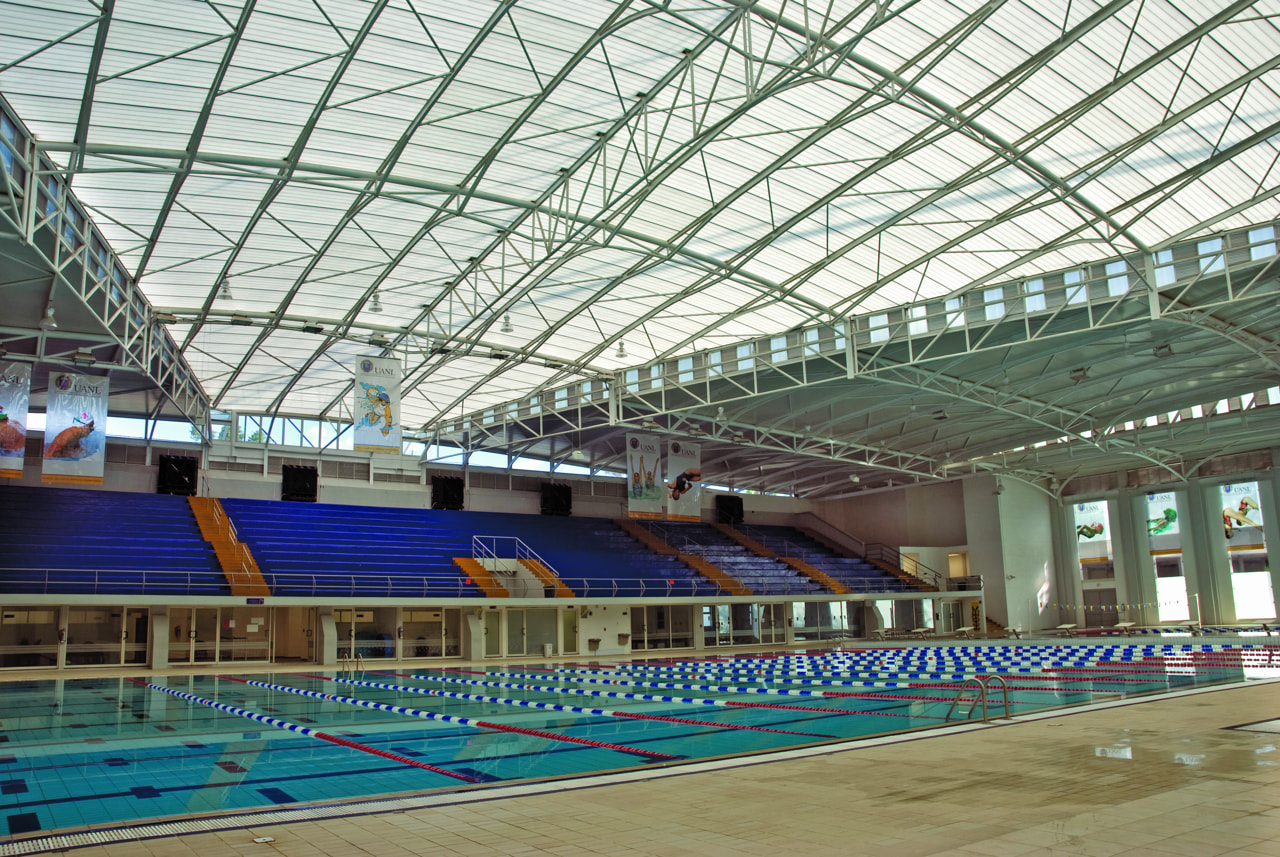

Natural Daylighting Design can save up to 75% of electric lighting costs. It is scientifically proven, that natural light increases health, productivity and performance of personnel, which also adds to gard savings. Acrylit provides uniform light diffusion with a haze factor of 90-95%.
No color distortion, important for quality control and/or working with dangerous materials.

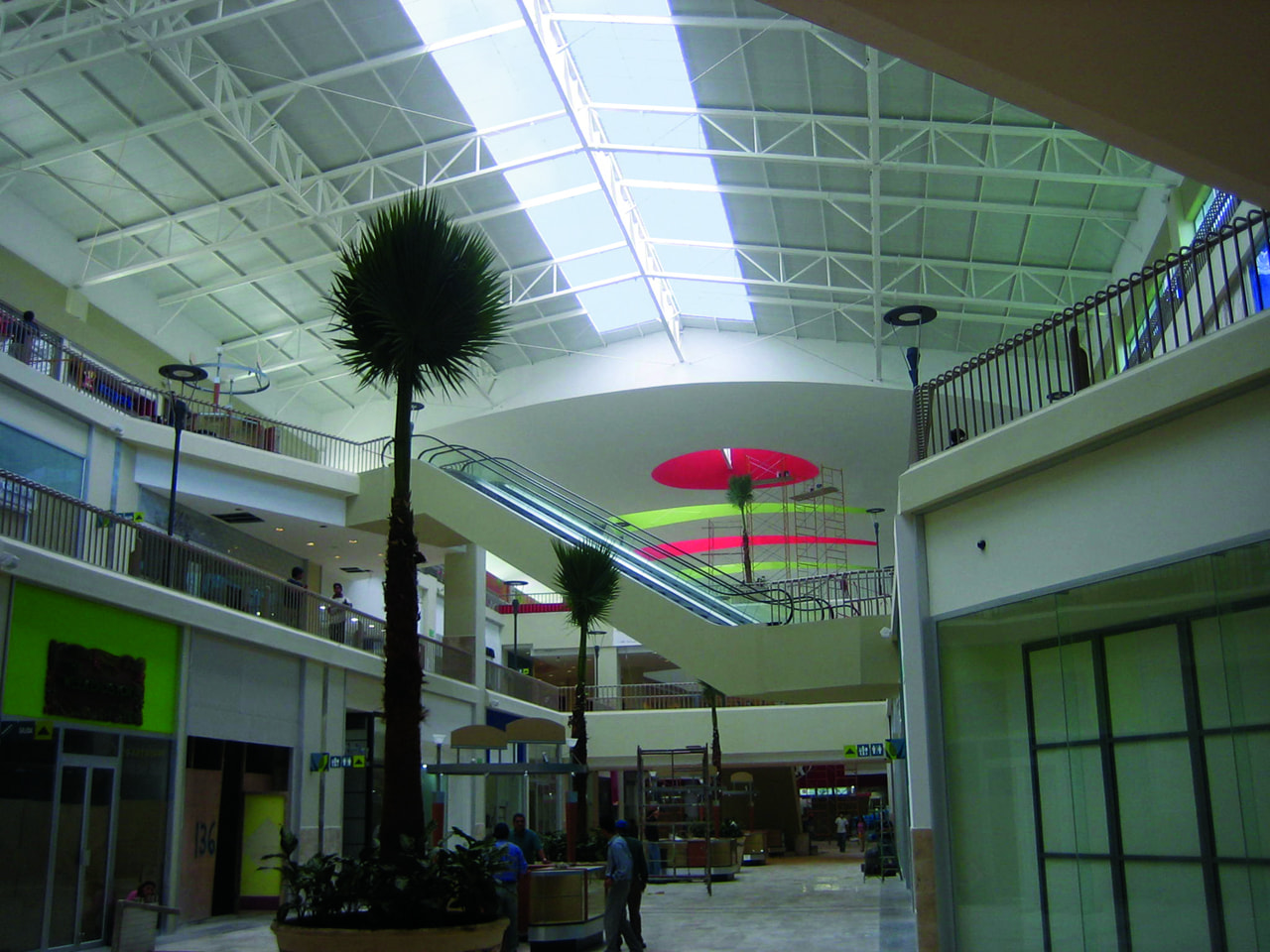

Improves the quality of work, reduces accidents, lessens scrap factories, increases shopping in stores, etc.

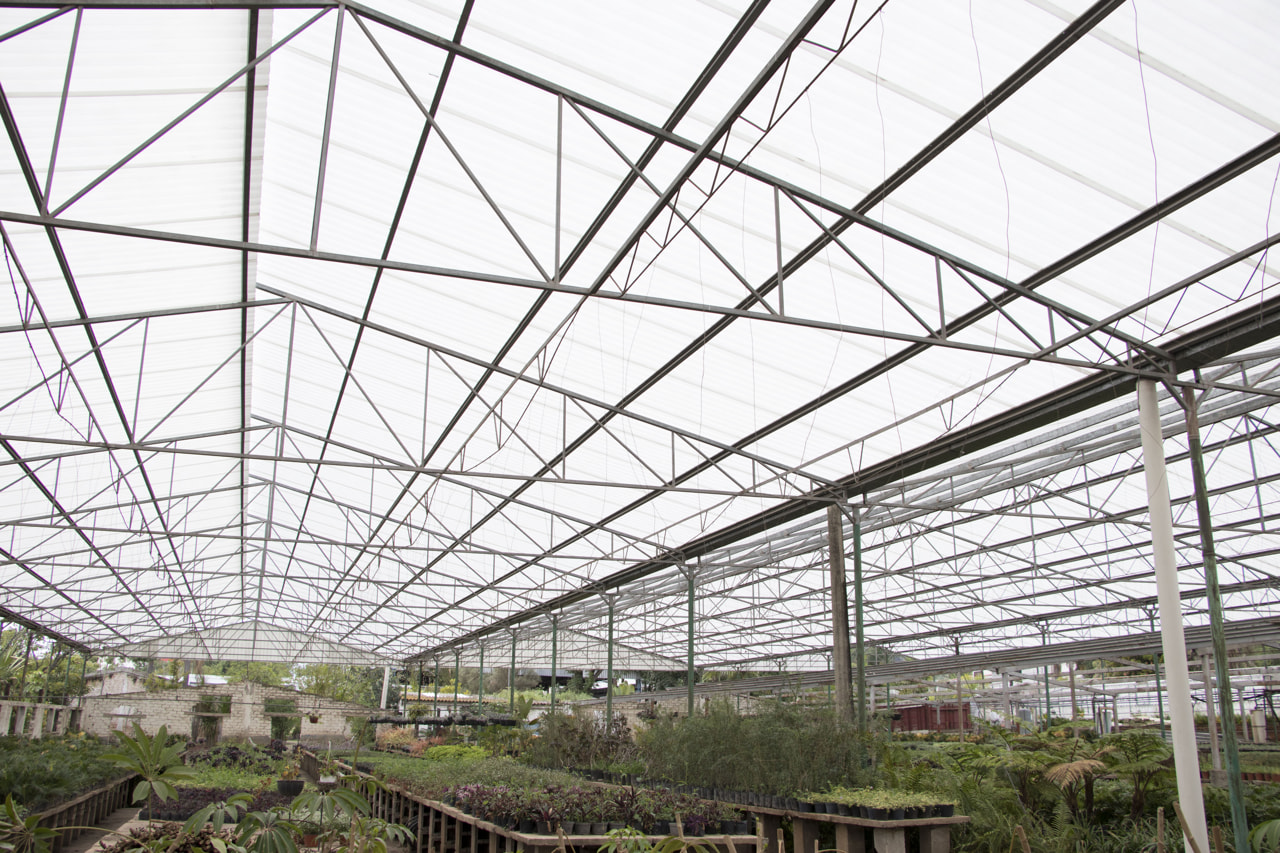

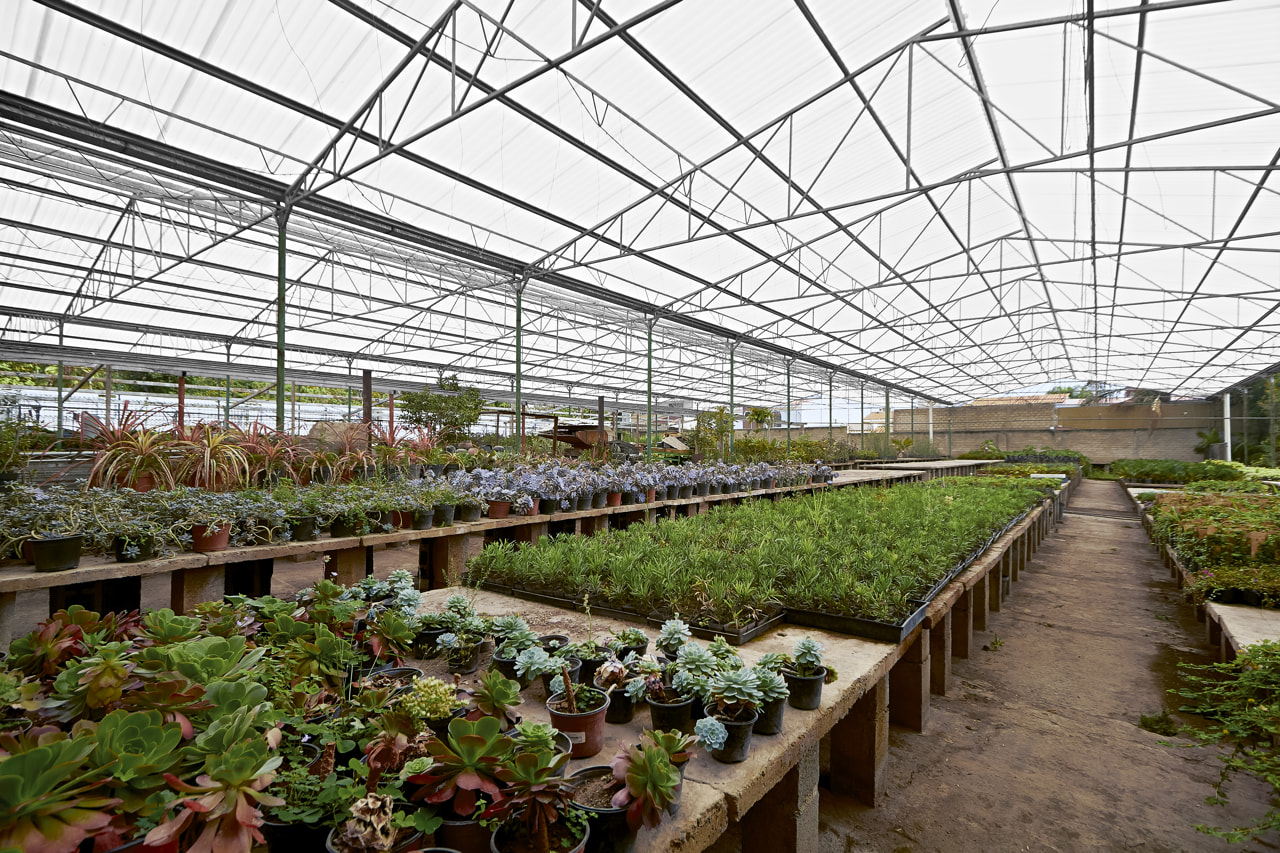

Penetrates deeper for greater photosynthesis and supports better plant growth.
Improves crop yield, heightens leaf count, lower crop temperature and shortens crop time.
| Light Transmission Properties | ||||
|---|---|---|---|---|
| Property | Polycarbonate(Twin wall) | Tedlar | AcrylitGC | Standard Polyester FRP |
| Light Transmission | 40 – 50% | 50 – 55% | 50 – 55% | 55 – 60% |
| Light Diffusion (% Haze) | N/A | 25 – 30% | 90 – 95% | 25 – 30% |
| Yellowing Index | 1.96 | N/A | 0.24 | 3.98 |
Please leave the following information, we’ll contact you as soon as possible.
Please leave the following information, we’ll contact you as soon as possible.
Stabilit has developed a product with special features for harsh natural environments such as hail, snow and wind, having a greater impact resistance which represents a better performance before these setbacks.
Acrylit High Performance provides outstanding strength thanks to a proprietary integrated formulation of 100% Acrylic resin with additional Woven Roving glass technology.
