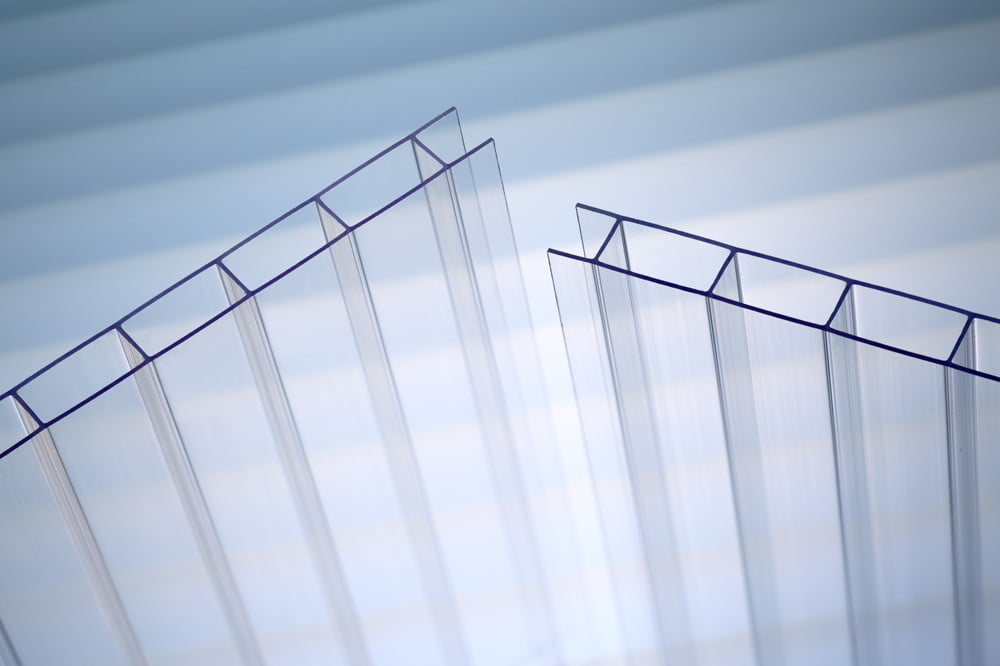

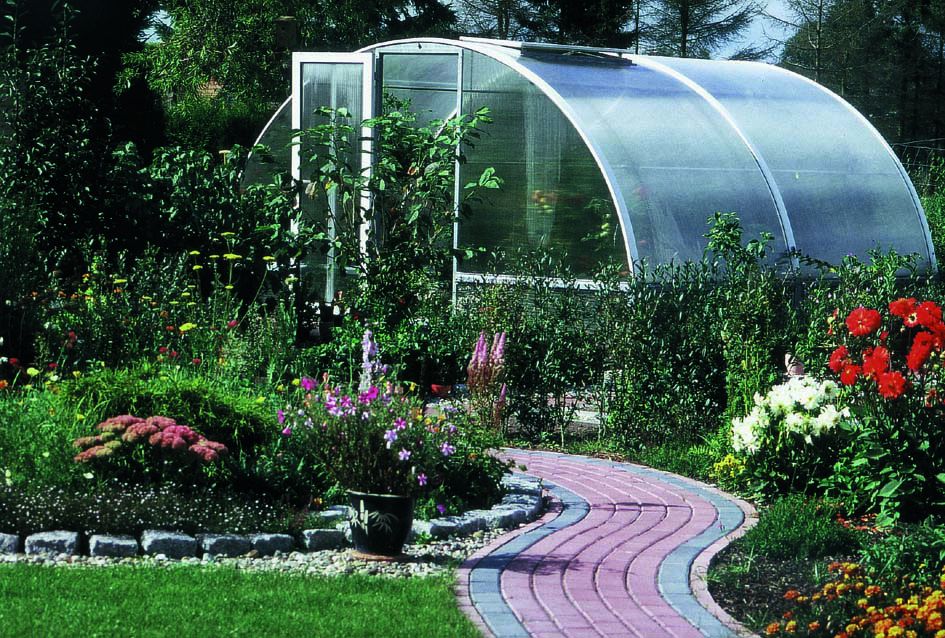

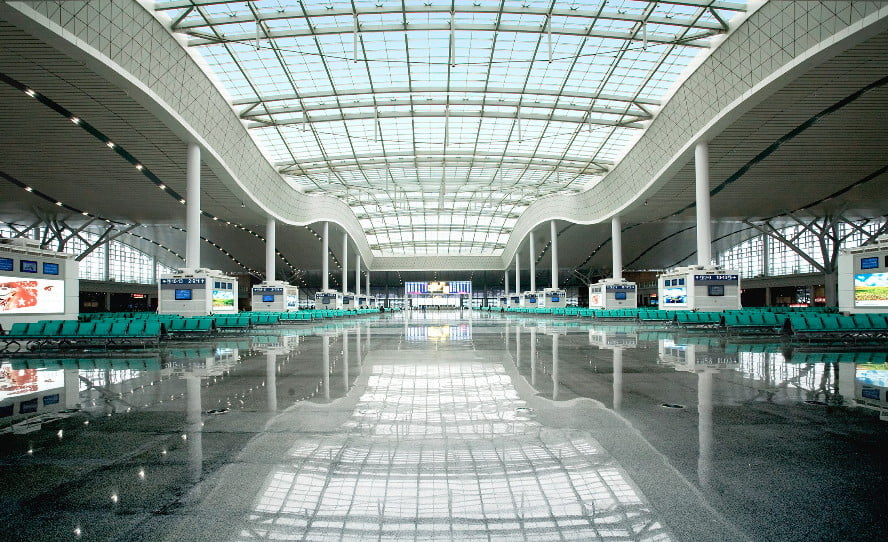

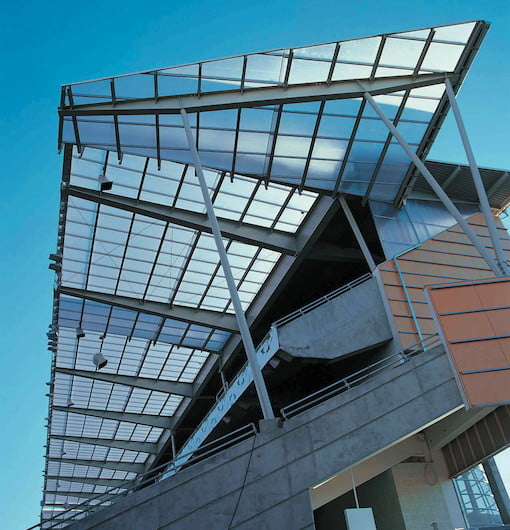

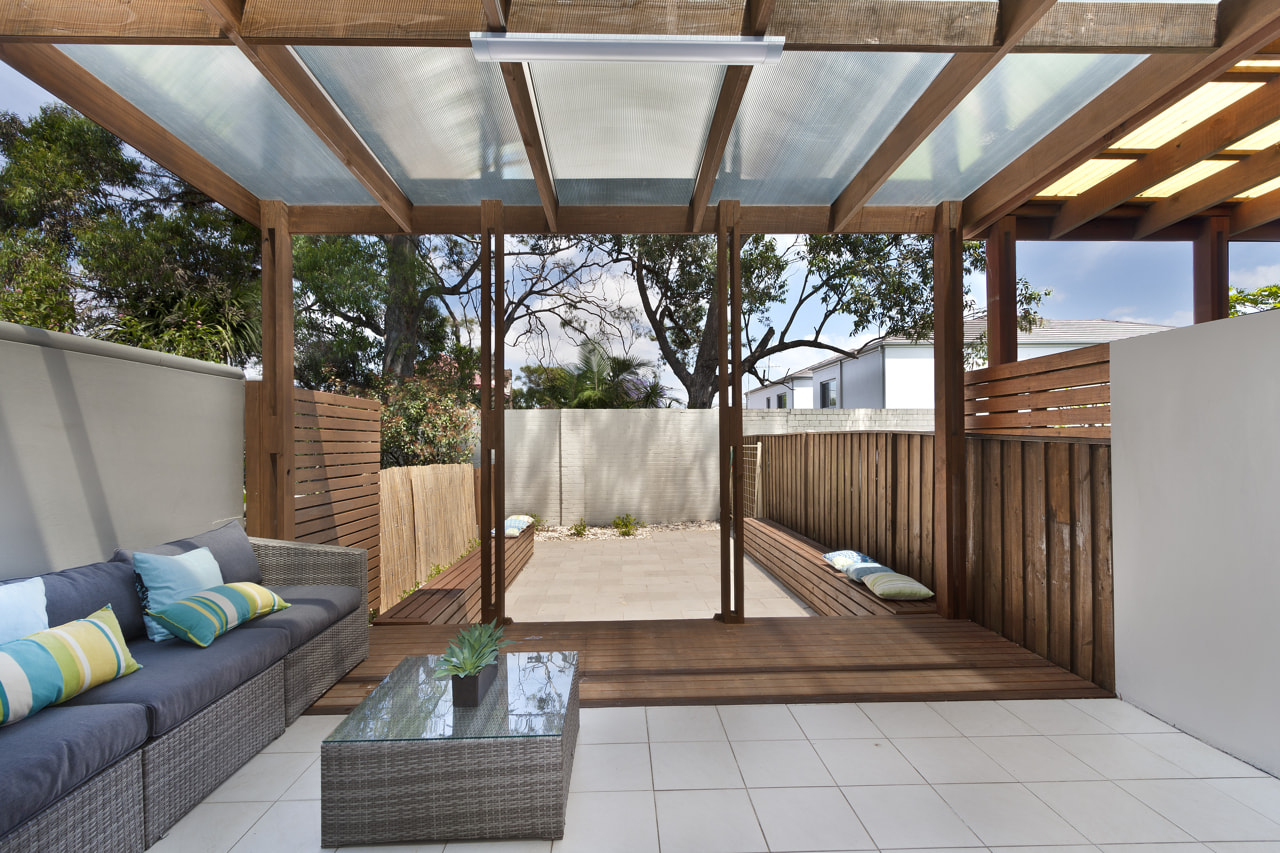

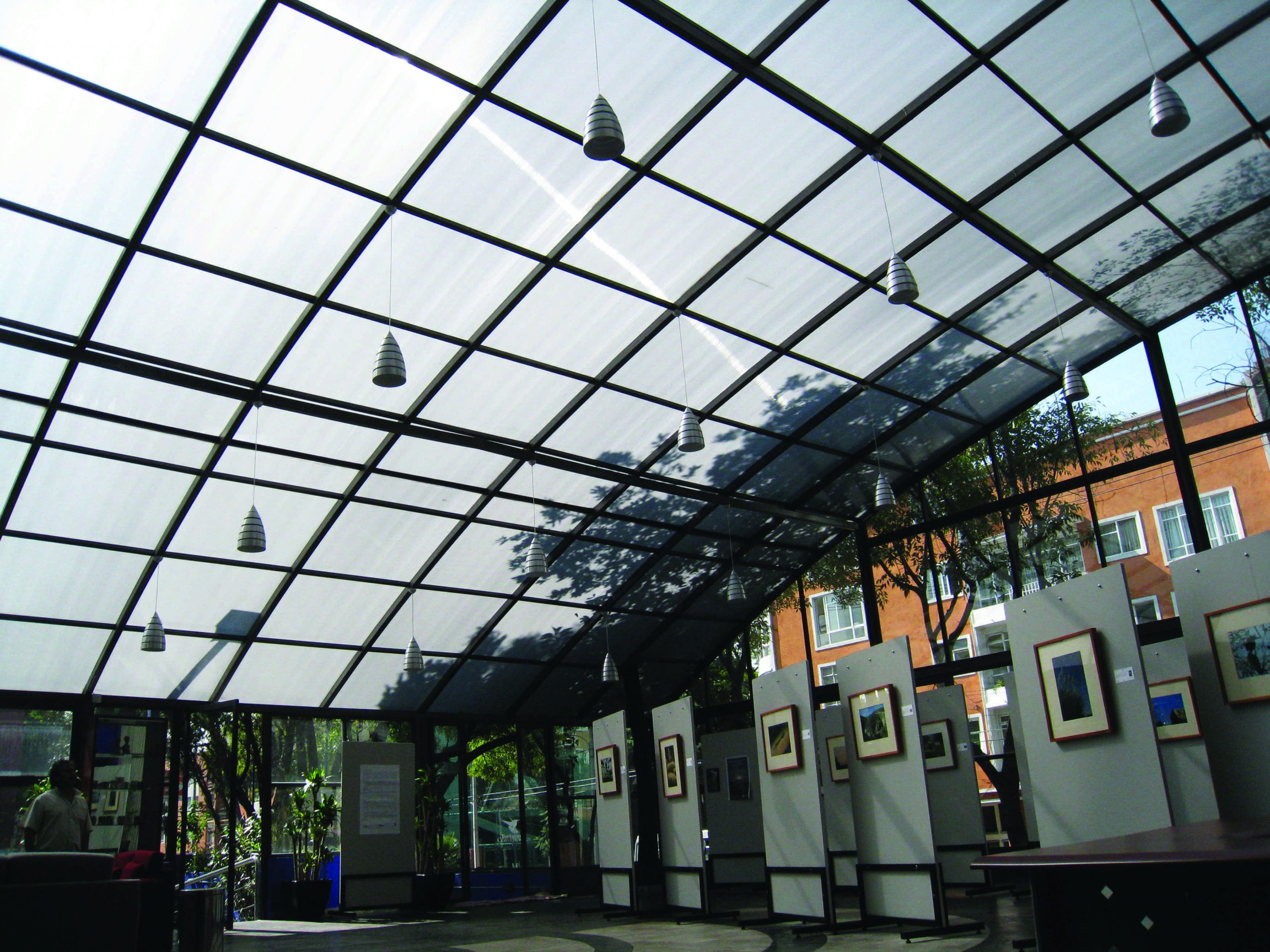

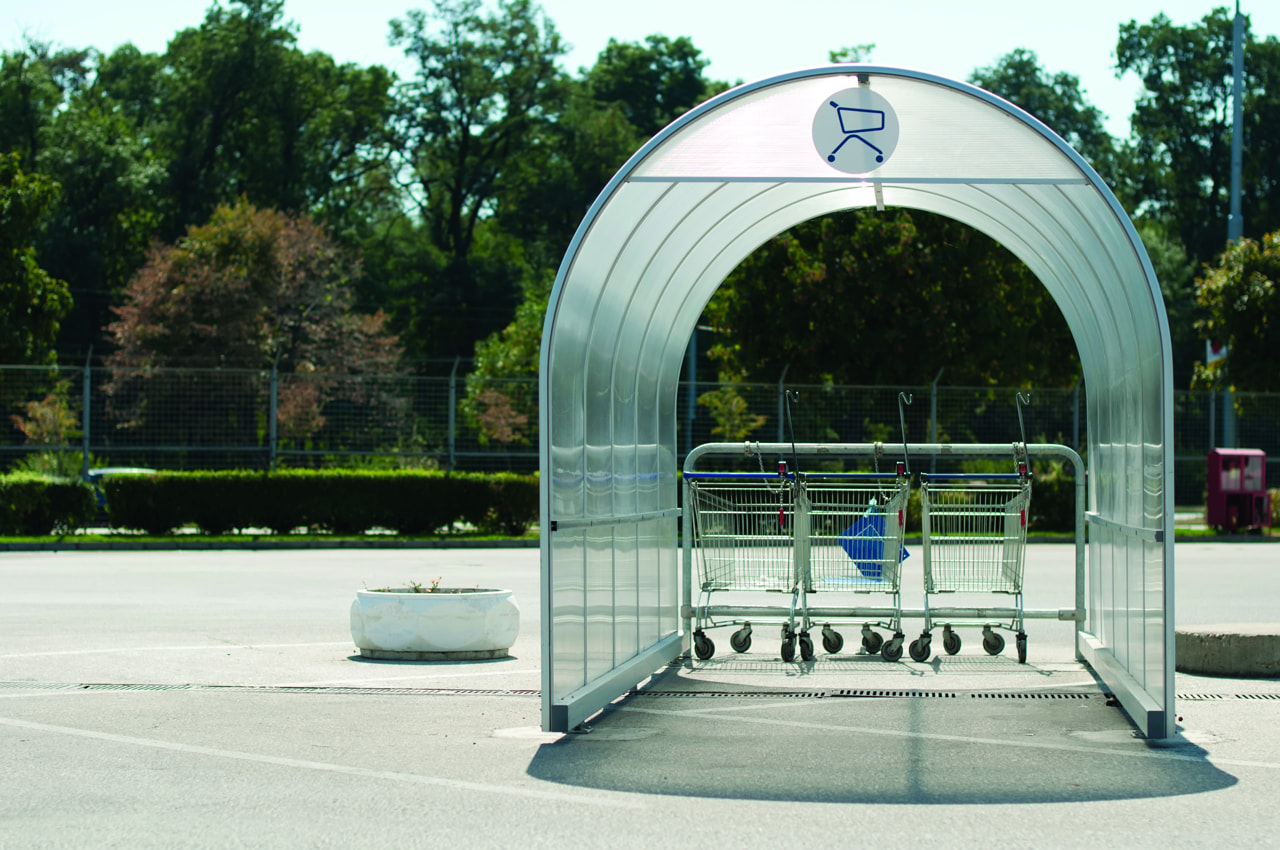

Polycarbonate Multiwall is a high performance roofing sheet which has been designed for industrial, commercial, architectural and domestic applications where insulating glazing is required.

It offers a 10 year non-prorated warranty against loss of light transmission and yellowing in accordance to ASTM 0-1003, thanks to the co-extruded UV protected PC layer fused to the PC substrate of the sheet.

	Physical Properties
Physical specification
Sheet Thickness	4mm	6mm	8mm	8mm	10mm	10mm	16mm
Structure	Twin Wall	Twin Wall	Twin Wall	Triple Wall	Twin Wall	Triple Wall	Triple Wall X-Structure
Weight (lb/ft2)	0.16	0.26	0.3	0.3	0.34	0.34	0.5
Weight (g/m2)	800	1300	1500	1500	1700	1700	2500
Light Transmission {%) Clear	82	80	80	80	80	80	59
Light Transmission {%) Bronze	52	50	50	50	46	46	31
Light Transmission (%) Opal	61	55	54	54	54	54	54
Light Transmission (%) White	37	23	19	19	15	15	4
Width (in.)	47.25″, 48″, 71.25″, 72″ and 82.67″
Length (ft.)	8′, 12′, 18, 36’up to 48′
Gauges	4mm(3/16″), 6mm(1/4″), 8mm(5/16″), 10mm(3/8″), 16mm(5/8″)
Basic colors	Clear / White / Smoke


	Thickness	Weight (lb/ft²)	Weight (g/m²)	Light transmission crystal	Sound reduction index	Cold forming radius	Standard colors

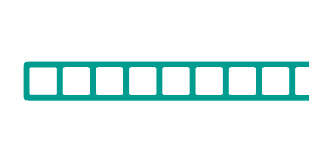

Twin Wall (2W)	4 mm	0.16	800	82%	N/A	29.5 in	Crystal White Bronze Green Blue Smoke Grey Pearlescent Grey Opaline Red Yellow
	6 mm	0.26	1300	80%	10	39.4 in
	8 mm	0.30	1500	80%	N/A	49.2 in
	10 mm	0.34	1700	80%	16	59.1 in

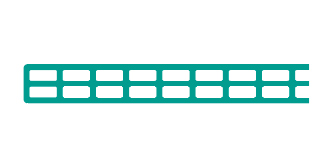

Triple Wall (3W)	8 mm	0.30	1500	74%	14	51.2 in
Triple Wall (3W)	10 mm	0.34	1700	80%	N/A	N/A

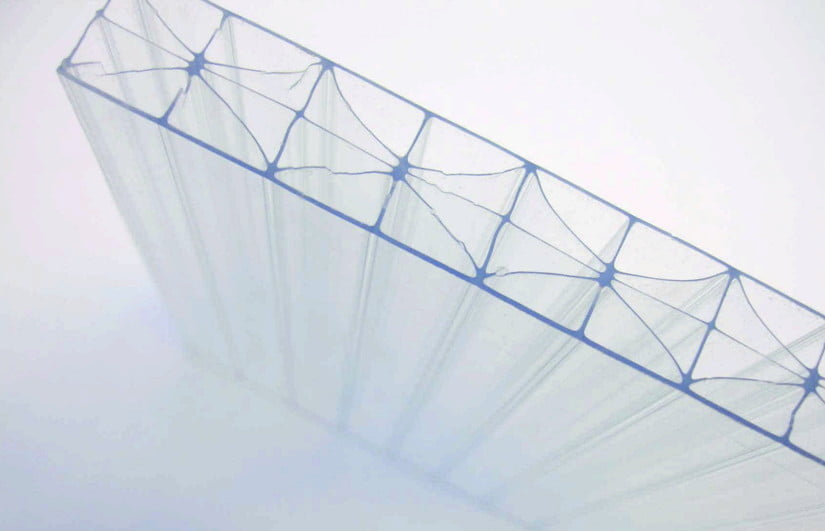

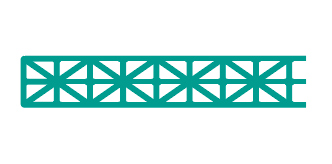

Triple Wall X-Structure (3WX/16)	16 mm	0.50	2500	59%	21	94.5 in

Technical Data
Property/ Thickness	Unit	4mm	6mm	8mm	8mm	10mm	16mm
Structure		Twin Wall	Twin Wall	Twin Wall	Triple Wall	Twin Wall	Triple Wall X-Structure
Thermal Insulation BTU/hr-ft2ºF (ASTM C976/90)	U-Value R- Value	0.72	0.62 1.6	0.60 1.7	0.60 6.47	0.56 1.9	0.42 2.4
Cold Forming Radius (Minimum permissible)	Inch	29.5	39.4	49.2	49.2	59.1	94.5
Heat expansion coefficient	Inch/ft °F	4×10-4	4×10-4	4×10-4	4×10-4	4×10-4	4×10-4
Max. permanent service temperature w/o load	°F	250	250	250	250	250	250
Possible expansion due to Heat and Moisture	Inch/ Inch	0.003	0.003	0.003	0.003	0.003	0.003
Weighted sound reduction index	dB	N/A	10	N/A	N/A	16	21

* Based on ISO 10077-2

STRUCTURAL CONSIDERATIONS

Load Deflection

When Polycarbonate twin wall sheet is used as a structural element in roofs and walls, the forces applied by wind and snow loads must be absorbed by a suitable structure. Also, adequate locking devices must be used to protect the whole structure (PC sheet and metal or wood structure) against wind suction.

The anticipated structural load values are specified in local building regulations. The total applicable load deflects the sheet. For safety and aesthetic reasons, the maximum bend should be limited to 5% of the dimensions of the shorter side of the sheet.

	For a 4′ wide sheet
Maximum Purlin Spacing (inches) sheet deflection -1″
Load (lb-f/ft2)	15	30	45	60
6mm	31″	24″	12″	–
8mm	38″	28″	18″	10″
10mm	45″	34″	28″	24″
16mm	75″	43″	36″	30″

	For a 6′ wide sheet
Maximum Purlin Spacing (inches) Sheet Deflection -1″
Load (lb-f/ft2)	15	30	45	60
6mm	25″	9″	–	–
8mm	36″	26″	12″	–
10mm	44″	33″	27″	20″
16mm	60″	40″	36″	30″

Heat Expansion

Glasteel’s PC sheet has a higher heat expansion coefficient than standard construction materials such as glass, steel and aluminum. Specific clearance between the sheet and the structural frame has to be calculated in order to ensure proper installation.

Material	Heat Expansion Coefficient (inch/ftºF)
Makrolon®	4 x 10-4
Glass	5 x 10-5
Steel	8 x 10-5
Aluminum	1.6 x 10-4

Fire Behavior

Glasteel’s Macrolux Multiwall sheet is produced using high-quality polycarbonate resin made by Bayer. It does not burn easily and has been defined as a self-extinguishable material by international standards in different countries.

	Fire Behavior
ASTM	CLASSIFICATK
ASTM E84-01	ClassA (NFPA); Class (UBC)
ASTM D635-74	Class CC1
ASTM D2843-93	Low Smoke Density (UBC standard No. 26-5)
ASTM D1929-68	Self Ignition Temperature greater than 650ºCF

LIGHT TRANSMISSION

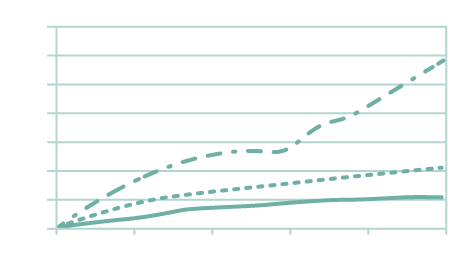

Change in the light transmission of PC sheet in time

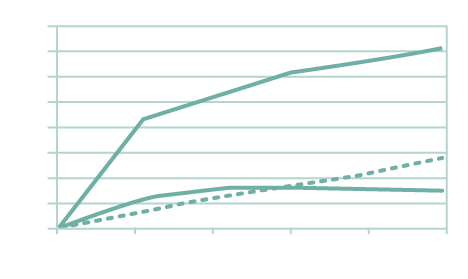

Change in the yellowness index of PC sheet in time

Downloads

MSDS 2017

Format: pdf

Download

IQ-RELAX FOR ADDED HEAT REDUCTION

Features advanced solar control properties, improved room comfort and high light transmission. (55.4 degrees Fahrenheit less inside temperature vs standard multiwall polycarbonate panel).

NO-DROP FOR HUMID CONDITIONS

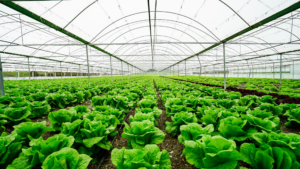

Macrolux AM greenhouse wall panels

Features a special water dispensing layer that prevents drop formation in humid conditions typically found in greenhouses.

IQ-SELECTIVE

Macrolux AM anti microbial panels

Offers an optimal combination of high light transmission from natural sunlight that enhances the photosynthesis process, and reduced temperatures by reflecting IR rays that cause extreme heat.

DOUBLE UV

Two sided UV protection for superior resistance which helps maintain long-term high light transmission and provides cutting and installation advantages.

FROSTYGLASS

Macrolux antimicrobial greenhouse panels

Features a ground glass appearance, providing greater light diffusion.

	Accessories
Type	Accessory Sample	Presentation	Color	Application	Length or amount

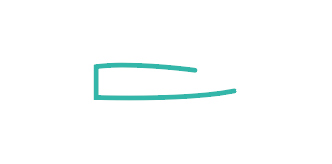

Standard U-Profile		For 4 & 6 mm, for 8 & 10 mm	Clear White Bronze	To cover the cells and prevent leaks	10´ ( 3,66 mts), in pack of 10 pieces

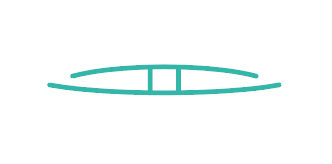

Standard H-Profile		For 4 & 6 mm, For 8 & 10 mm	Clear White Bronze	To join multiwall panels	24´ ( 7,32 mts), in pack of 10 pieces

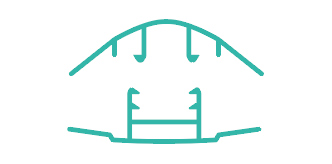

H profile molding Clamp		For 4 & 6 mm, for 8 & 10 mm	Clear	To join multiwall panels	24´ ( 7,32 mts), in pack of 10 pieces

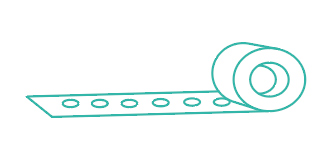

Vented Tape		16´, 147 ´(5 ml, 45 ml)	Aluminum	To seal allowing breathing the material	min. 10 pieces

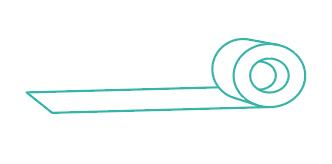

Aluminum tape		16´, 147 ´(5 ml, 45 ml)	Aluminum	To seal	min. 10 pieces

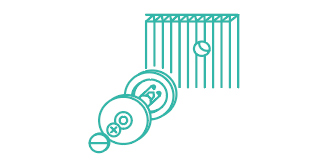

Buttons		For 4 & 6 mm, For 8 & 10 mm	White	When perforation is absolutely necessary	min. 10 pieces

HANDLING

In order to avoid condensation in the sheet cells and sheet deterioration, always place the sheet with the cells in the vertical direction.
Always store the sheets in horizontal position, never against the floor. Apply aluminum tape to seal the cells after cutting the sheet.
Do not walk over the sheets.
Do not apply direct load on the sheet with foot or knee. Use wood platforms or supports to spread out the pressure during installation.
Remove IIV protecting masking only and right after installation; never before and never after hours of being installed.
Glasteel’s PC Sheet can be cut to size using tools for standard materials such as cutters and saws. However, it is recommended the use of a table with fixed knives for a cleaner cut.
It is not recommended to drill holes in the sheet. Rather the use of aluminum or Polycarbonate profiles to fix the sheets to the structure is recommended.
Never use PVC profiles when installing Macrolux Multiwall sheets.

Cleaning and Maintenance

For general cleaning it is recommended to use a non-abrasive, solvent free neutral soap with water.
Rinse with high-pressure washer and use a soft cloth or sponge to loosen any remaining of dirt and grime. Never use abrasive cleaners or brushes. Do not scrub the sheet surface.
Never clean with gasoline, benzene or acetone.
